Zwenigorod, Russian Federation (the) (ZWEN00RUS)

RESPONSIBLE AGENCY GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
RESPONSIBLE FOR METADATA GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
CURRENT STATION CONFIGURATION zwen00rus_20220510.log
STATUS IN EPN former since 21-11-2004
LAST AVAILABLE DATA 19-11-2004 (decommissioned station)
LAST RECEIVER AOA SNR-8000 ACT (07-09-2000 to 21-11-2004)
SET TO TRACK GPS
LAST ANTENNA AOAD/M_T/NONE (22-09-2004 to 21-11-2004)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 324/2004
BKGI 324/2004
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station ZWEN00RUS
Last ETRF2000 position valid from 267/2000 to 075/2003
expressed at epoch 001/2010
X = 2886325.745 m Vx = -0.0018 m/y
Y = 2155998.332 m Vy = -0.0012 m/y
Z = 5245816.016 m Vz = -0.0027 m/y

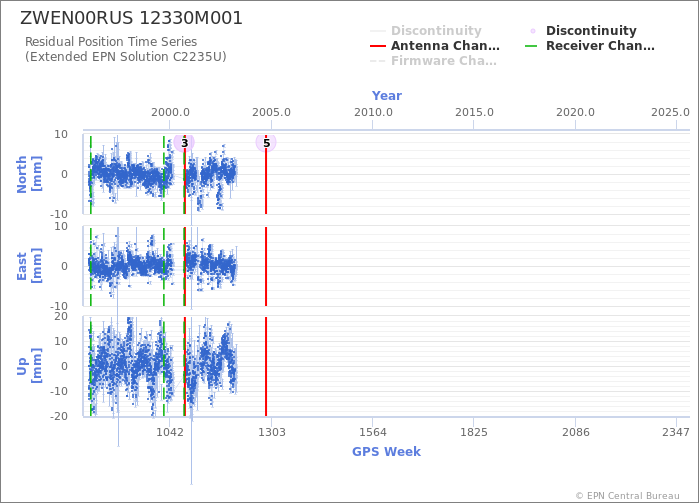

Position time series

Position time series

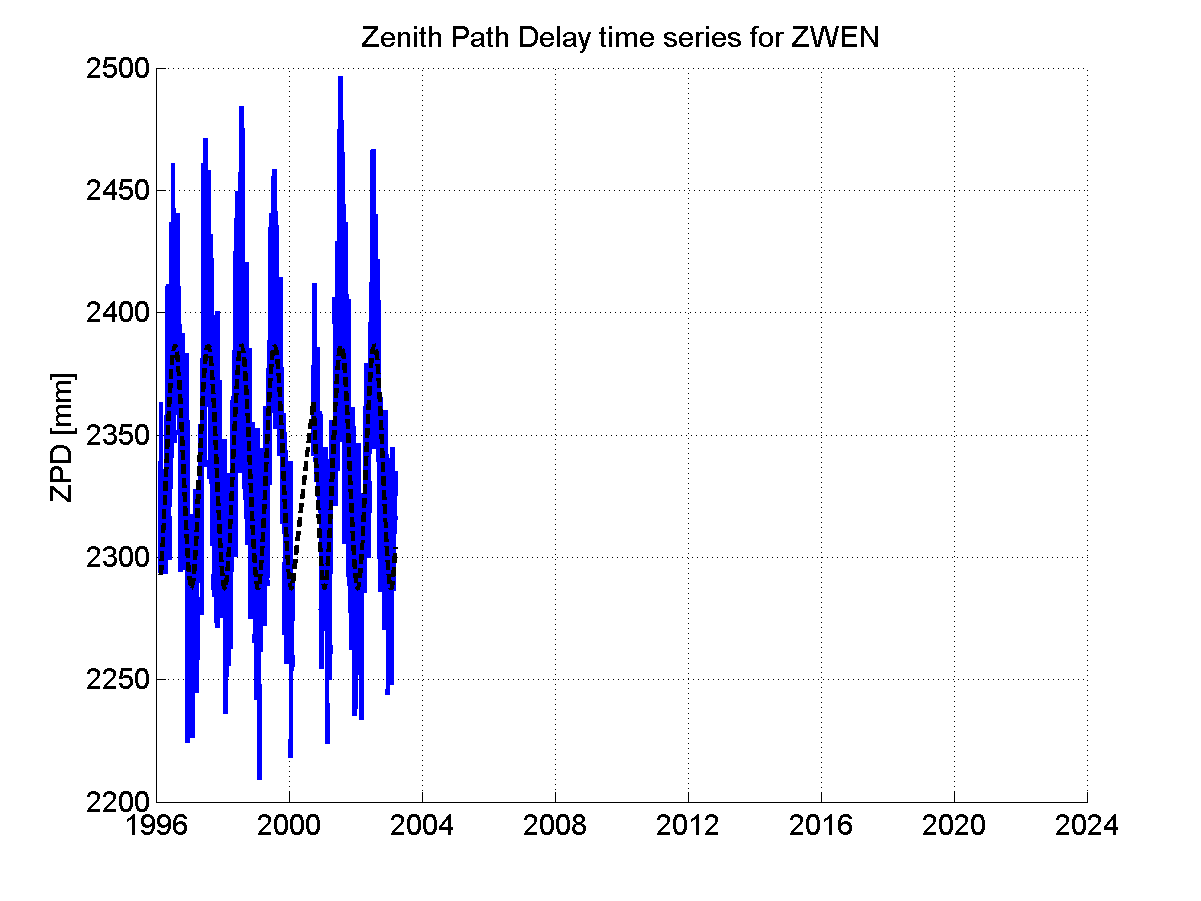

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

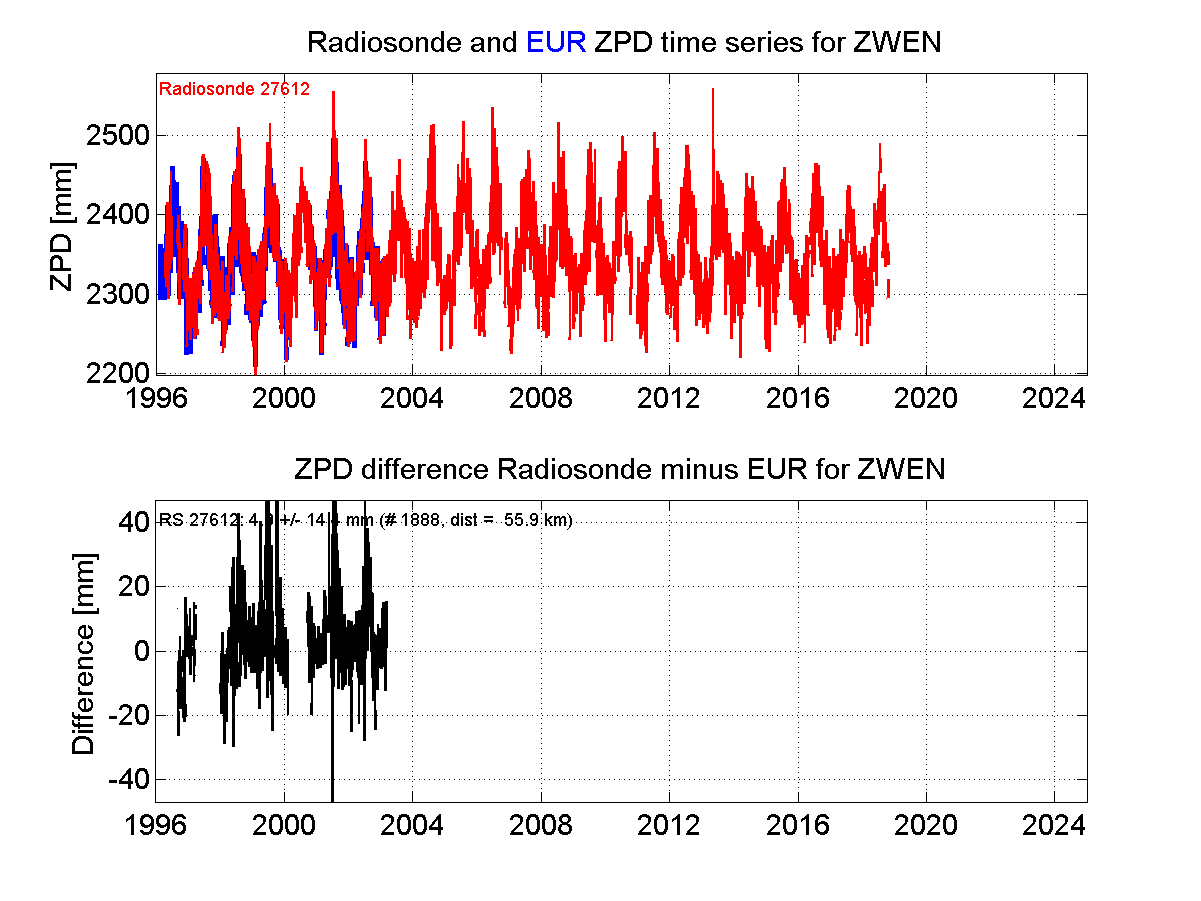

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location
