EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	LPT (Swiss Federal Office of Topography (swisstopo))
RESPONSIBLE FOR METADATA	LPT (Swiss Federal Office of Topography (swisstopo))
CURRENT STATION CONFIGURATION	zim200che_20230131.log
STATUS IN EPN	included since 16-12-2007
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	TRIMBLE NETR9 (31-01-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM59800.00/NONE (10-10-2013 to now)
INDIVIDUAL CALIBRATION(S)	TRM55971.00/NONE (SN: 30318066) from 2007-11-08 to 2009-05-12 : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2007-04-23) TRM59800.00/NONE (SN: 60369) from 2009-05-12 to 2013-10-10, from 2013-10-10 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2009-03-19)
DATA ROUTINELY ANALYSED BY	BEK, COD, IGE, LPT, RGA, ROB
INCLUSION IN OTHER NETWORK(S)	IGS

Data Provided

Data centres	Online	Last data	Availability	Latency
BKGI		110/2024 (O)	100%	100%

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

ZIM200CHE0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/19 03:44 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/04/19 03:44 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (Nav 5.56 / Boot 5.56) wrt site log (5.56)
2024/04/19 03:44 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.08935 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/19 02:05 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (Nav 5.56 / Boot 5.56) wrt site log (5.56)
2024/04/19 02:05 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.08935 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/19 07:07 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (Nav 5.56 / Boot 5.56) wrt site log (5.56)
2024/04/19 07:07 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.08935 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

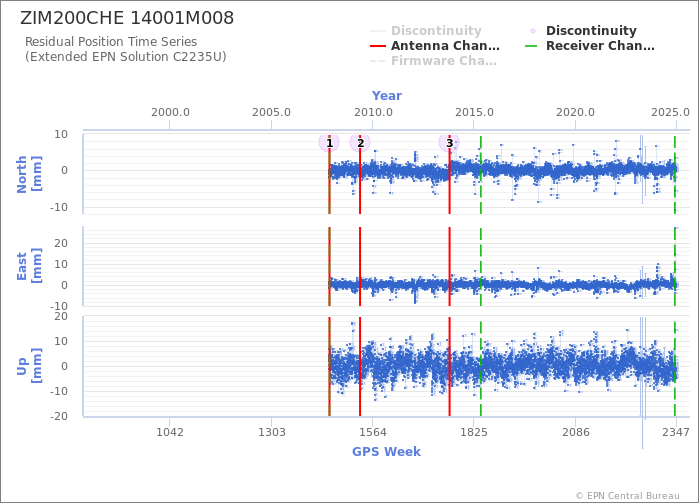

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station ZIM200CHE
Last ETRF2000 position valid from 286/2013 to 316/2022 expressed at epoch 001/2010
X = 4331300.151 m	Vx = -0.0006 m/y
Y = 567537.074 m	Vy = -0.0001 m/y
Z = 4633133.503 m	Vz = -0.0002 m/y
