EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IAA (Institute of Applied Astronomy)
RESPONSIBLE FOR METADATA	IAA (Institute of Applied Astronomy)
CURRENT STATION CONFIGURATION	zeck00rus_20231019.log
STATUS IN EPN	included since 28-09-1997
LAST AVAILABLE DATA	22-04-2024
LAST RECEIVER	JAVAD TRE_3 DELTA (19-10-2023 to now)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	JAVRINGANT_DM/JVDM (18-08-2011 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, BKG, COD, GFZ, MUT
INCLUSION IN OTHER NETWORK(S)	IGS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 07-03-2023.

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

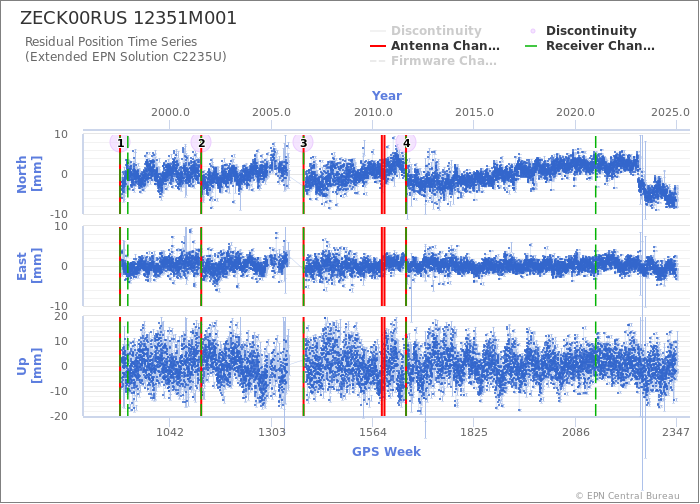

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station ZECK00RUS
Last ETRF2000 position valid from 231/2011 to 316/2022 expressed at epoch 001/2010
X = 3451175.118 m	Vx = 0.0007 m/y
Y = 3060335.250 m	Vy = -0.0004 m/y
Z = 4391955.482 m	Vz = 0.0006 m/y
