Station Configuration

RESPONSIBLE AGENCY	JPL (Jet Propulsion Laboratory)
RESPONSIBLE FOR METADATA	JPL (Jet Propulsion Laboratory)
CURRENT STATION CONFIGURATION	thu100grl_19990813.log
STATUS IN EPN	former since 12-01-2003
LAST AVAILABLE DATA	11-01-2003 (decommissioned station)
LAST RECEIVER	ROGUE SNR-12 RM (01-07-1999 to 12-01-2003)
SET TO TRACK	GPS
LAST ANTENNA	AOAD/M_T/DOME (02-05-1995 to 12-01-2003)
INDIVIDUAL CALIBRATION(S)	none
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

RINEX V2.11

Daily

(data calendar)

Data centres	Last data
EPNCB (historical)	011/2003
BKGI	011/2003

Hourly

No recent data available

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station THU100GRL
Last ETRF2000 position valid from 002/1996 to 109/2001 expressed at epoch 001/2010
X = 538981.389 m	Vx = -0.0121 m/y
Y = -1388714.892 m	Vy = -0.0089 m/y
Z = 6181005.080 m	Vz = -0.0002 m/y

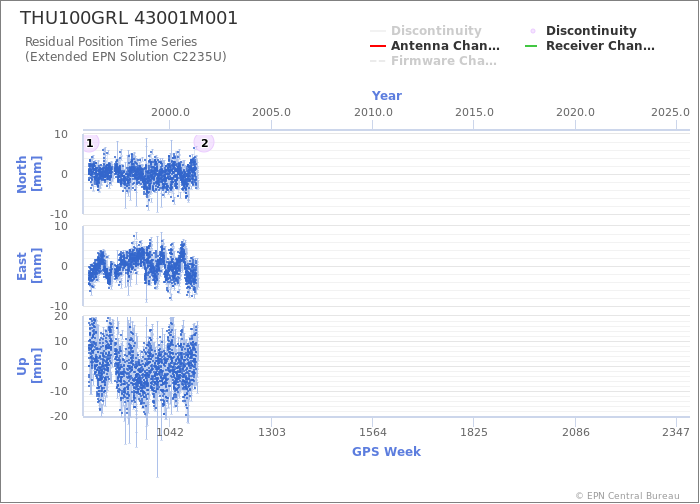

Position time series

Tropospheric Delays

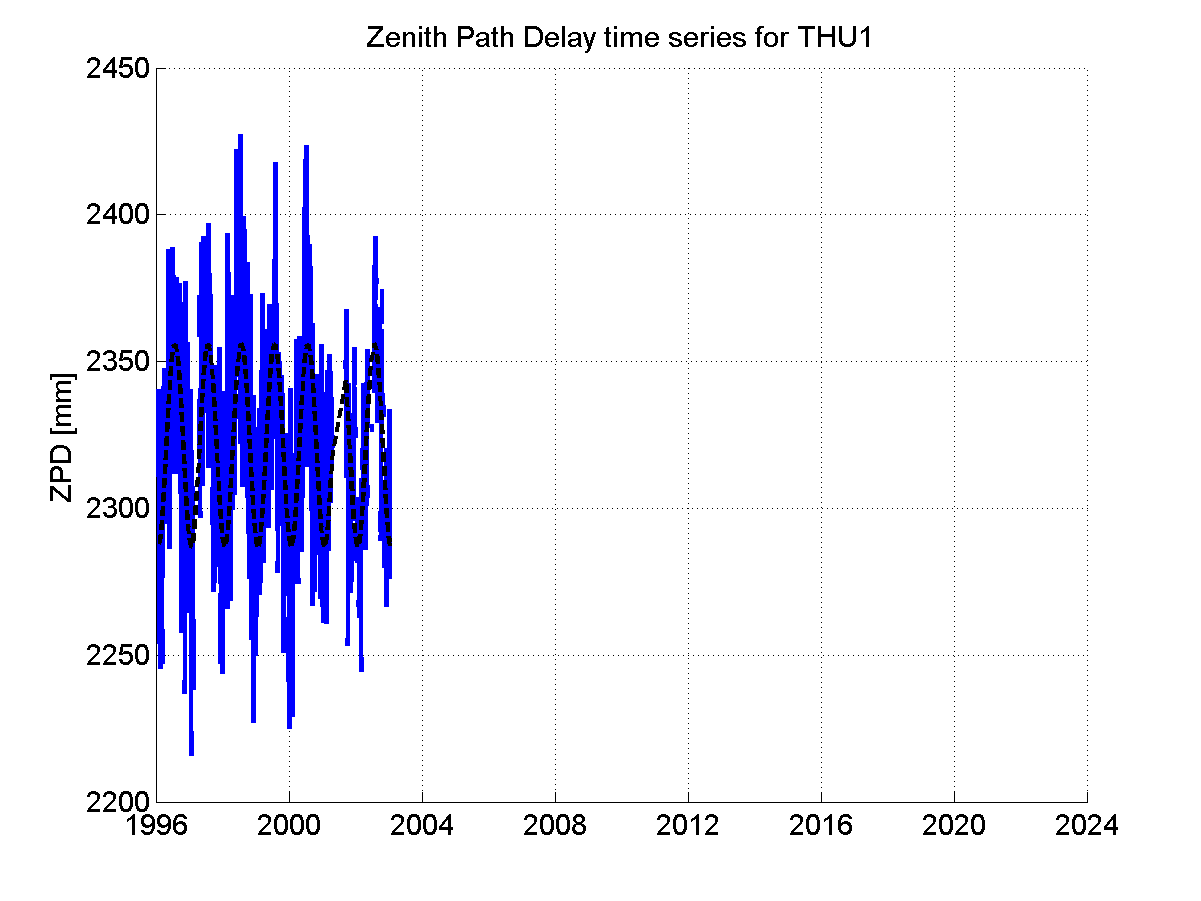

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
