EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	sofi00bgr_20230608.log
STATUS IN EPN	included since 22-06-1997
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	LEICA GR50 (26-05-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R3/LEIT (29-04-2010 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R3/LEIT (SN: 09160008) from 2010-04-29 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2010-04-01)
DATA ROUTINELY ANALYSED BY	BEK, BEV, BKG, RGA, SGO
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 10-02-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

SOFI00BGR0 :

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/18 23:14 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/18 23:14 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50.274) wrt site log (4.50/7.710)
2024/04/18 23:14 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.2200 m) wrt site log (0.38096 m)
2024/04/18 23:14 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.1377 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/19 04:17 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/19 04:17 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50.274) wrt site log (4.50/7.710)
2024/04/19 04:17 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.2200 m) wrt site log (0.38096 m)
2024/04/19 04:17 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.1377 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

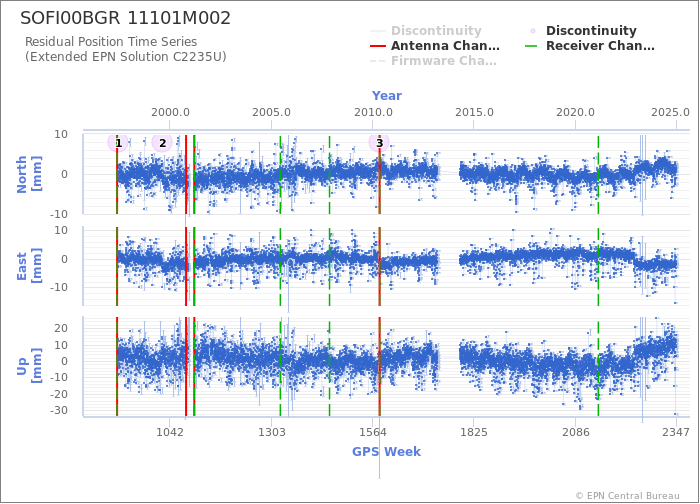

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station SOFI00BGR
Last ETRF2000 position valid from 120/2010 to 316/2022 expressed at epoch 001/2010
X = 4319372.424 m	Vx = 0.0006 m/y
Y = 1868687.543 m	Vy = 0.0006 m/y
Z = 4292063.708 m	Vz = -0.0027 m/y
