EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	FGI (National Land Survey of Finland)
RESPONSIBLE FOR METADATA	FGI (National Land Survey of Finland)
CURRENT STATION CONFIGURATION	sod300fin_20230117.log
STATUS IN EPN	included since 02-04-2017
LAST AVAILABLE DATA	15-04-2024
LAST RECEIVER	JAVAD TRE_3 DELTA (03-11-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	JAVRINGANT_DM/SCIS (05-11-2012 to now)
INDIVIDUAL CALIBRATION(S)	JAVRINGANT_DM/SCIS (SN: 00745) from 2012-11-05 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2012-08-20)
DATA ROUTINELY ANALYSED BY	GFZ, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 19-08-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

SOD300FIN0 :

ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/04/16 00:45 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS)
2024/04/16 00:45 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SV70N4PXD8OJ0T4F2MW) wrt site log (02807)
2024/04/16 00:45 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.08593 m)
2024/04/16 00:45 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1902 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/04/15 23:09 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SV70N4PXD8OJ0T4F2MW) wrt site log (02807)
2024/04/15 23:09 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.08593 m)
2024/04/15 23:09 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1902 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/04/16 04:07 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SV70N4PXD8OJ0T4F2MW) wrt site log (02807)
2024/04/16 04:07 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.08593 m)
2024/04/16 04:07 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1902 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

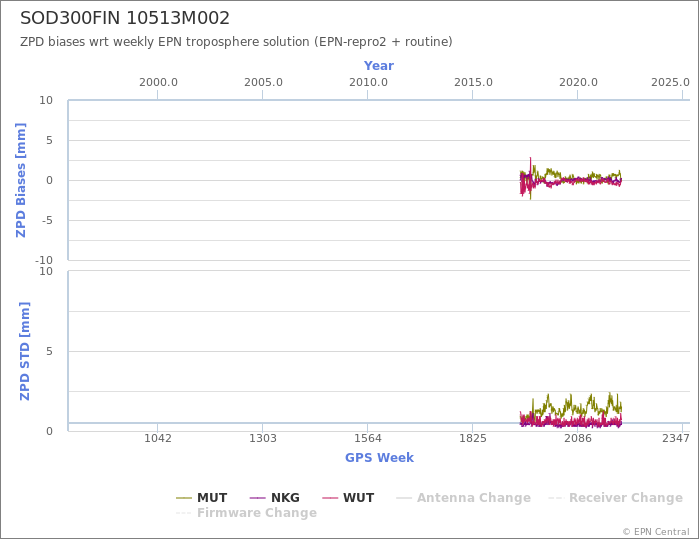

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

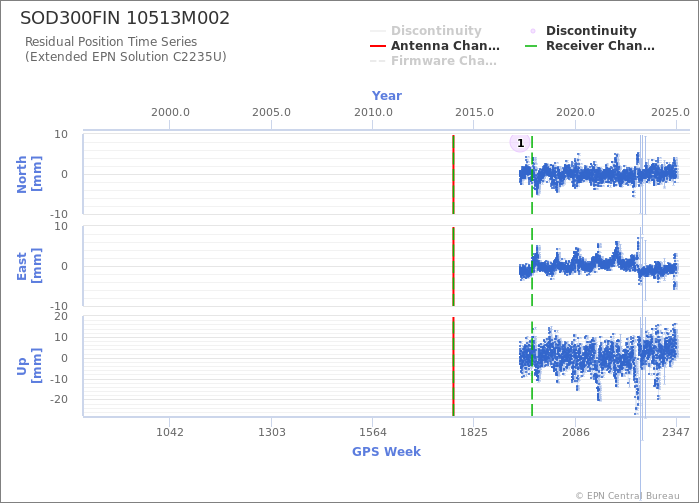

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station SOD300FIN
Last ETRF2000 position valid from 092/2017 to 316/2022 expressed at epoch 001/2010
X = 2200149.779 m	Vx = 0.0019 m/y
Y = 1091650.598 m	Vy = 0.0011 m/y
Z = 5866868.404 m	Vz = 0.0056 m/y
