Saint-Mandé, France (SMNE00FRA)

RESPONSIBLE AGENCY IGN_RGP (Institut National de l'Information Géographique et Forestière)
RESPONSIBLE FOR METADATA IGN_RGP (Institut National de l'Information Géographique et Forestière)
CURRENT STATION CONFIGURATION smne00fra_20220301.log
STATUS IN EPN former since 06-03-2022
LAST AVAILABLE DATA 28-02-2022 (decommissioned station)
LAST RECEIVER TRIMBLE NETR9 (13-03-2019 to 01-03-2022)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA TRM55971.00/NONE (05-05-2011 to 01-03-2022)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 059/2022
BEV 059/2022
BKGE 059/2022
RINEX V3.05 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Last data
EPNCB (historical)059/2022
BEV059/2022
BKGE059/2022
Hourly

No recent data available

Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station SMNE00FRA
Last ETRF2000 position valid from 274/2015 to 059/2022
expressed at epoch 001/2010
X = 4201792.295 m Vx = -0.0004 m/y
Y = 177945.238 m Vy = -0.0003 m/y
Z = 4779286.684 m Vz = -0.0008 m/y

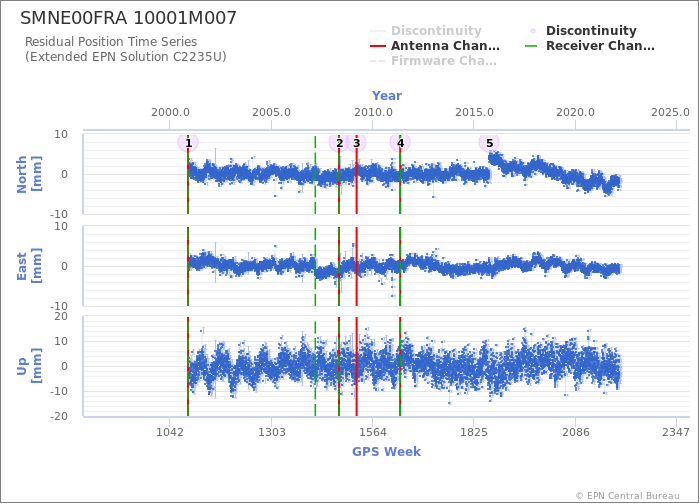

Position time series

Position time series

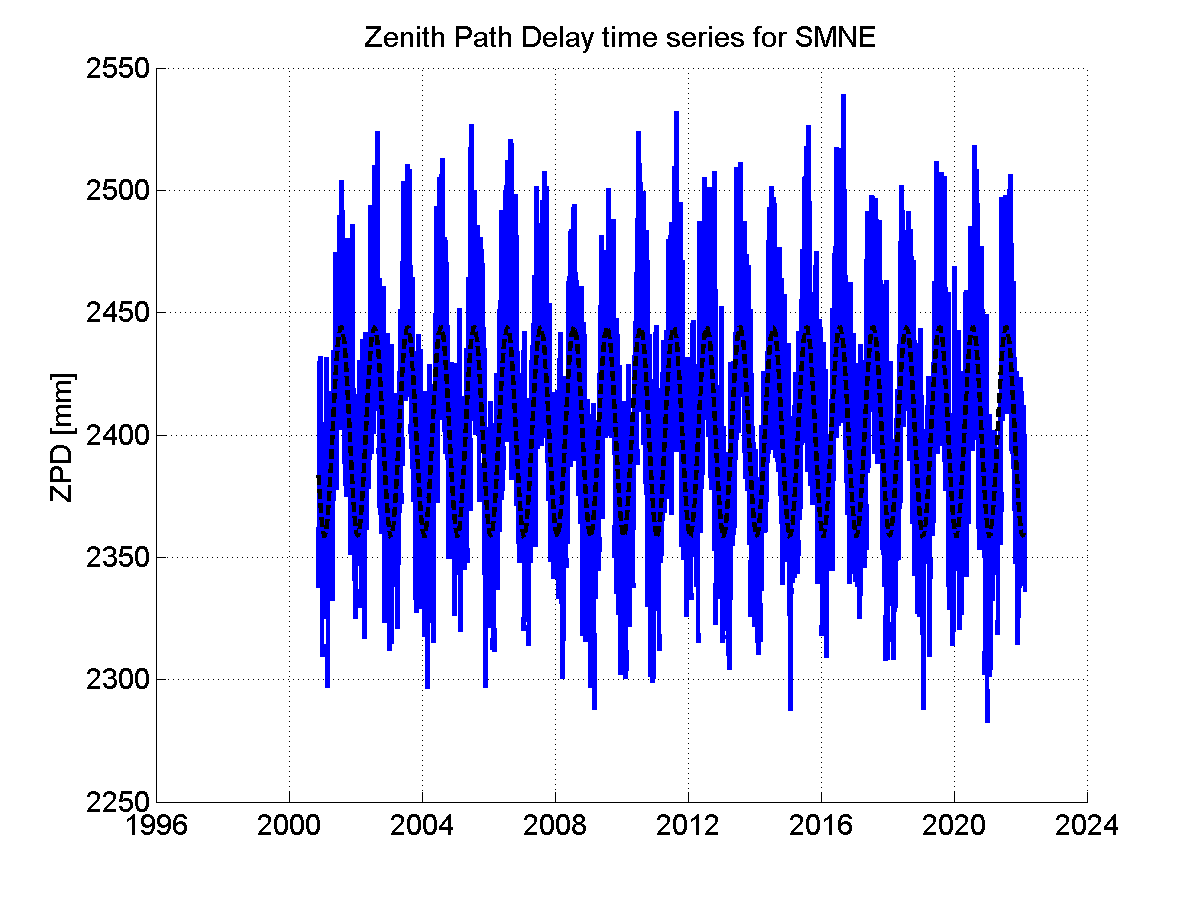

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

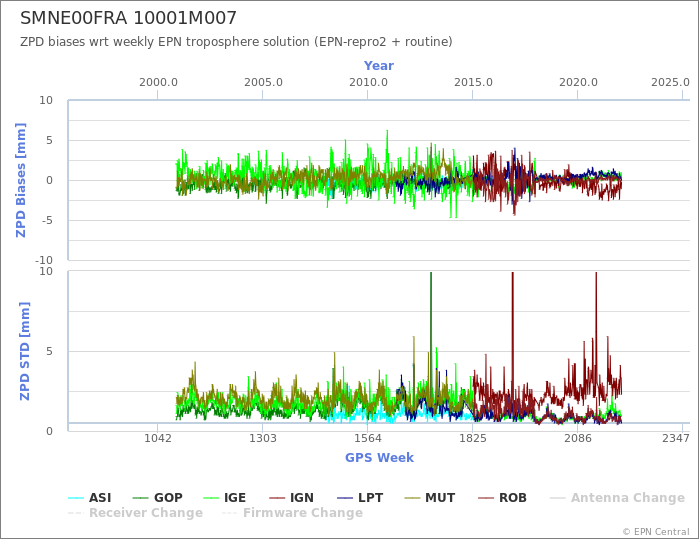

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

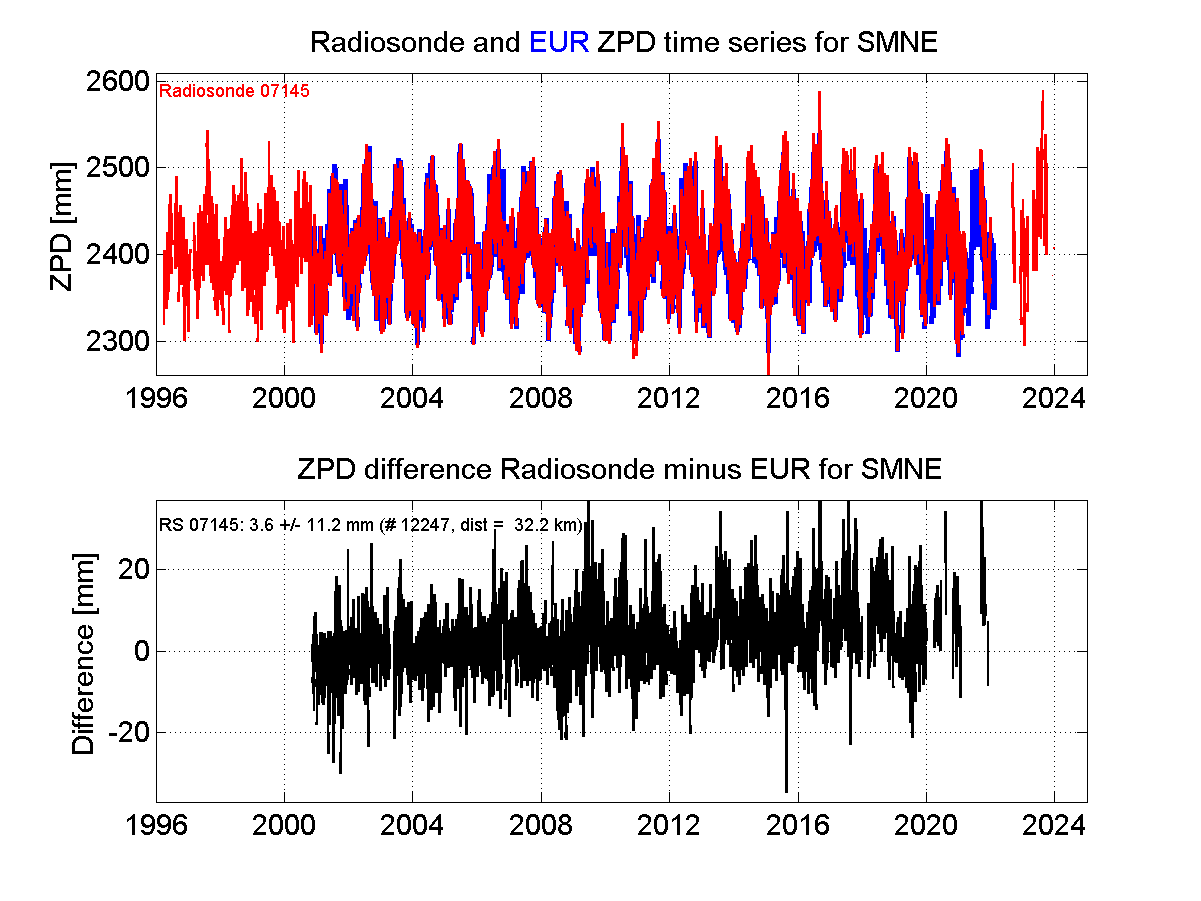

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
