EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
RESPONSIBLE FOR METADATA	GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
CURRENT STATION CONFIGURATION	pots00deu_20230117.log
STATUS IN EPN	included since 31-12-1995
LAST AVAILABLE DATA	17-04-2024
LAST RECEIVER	JAVAD TRE_3 (17-01-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
LAST ANTENNA	JAVRINGANT_G5T/NONE (06-10-2020 to now)
INDIVIDUAL CALIBRATION(S)	JAVRINGANT_G5T/NONE (SN: 6077) from 2018-07-17 to 2020-09-09, from 2020-09-09 to 2020-10-06, from 2020-10-06 to now : BERL - ROBOT (freq: G01, G02, R01, R02, date: 2017-08-03) JAV_RINGANT_G3T/NONE (SN: 316) from 2011-02-15 to 2018-07-17 : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E06, E07, date: 2010-01-19)
DATA ROUTINELY ANALYSED BY	BKG, GFZ, MUT, NKG, ROB
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 09-01-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

POTS00DEU0 :

ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7) : stream temporarily unavailable

BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)
2024/04/17 21:34 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.1206 m) wrt site log (0.16867 m)
2024/04/17 21:34 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.4231 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/04/18 03:14 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)
2024/04/18 03:14 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS+GLO+GAL+BDS+QZSS+SBAS)
2024/04/18 03:14 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.1206 m) wrt site log (0.16867 m)
2024/04/18 03:14 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.4231 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

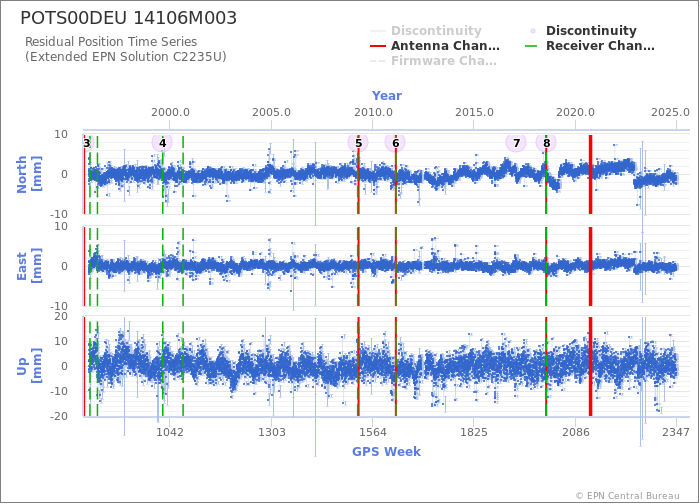

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station POTS00DEU
Last ETRF2000 position valid from 199/2018 to 316/2022 expressed at epoch 001/2010
X = 3800689.938 m	Vx = -0.0004 m/y
Y = 882077.171 m	Vy = -0.0004 m/y
Z = 5028791.124 m	Vz = -0.0007 m/y
