RESPONSIBLE AGENCY ASI (Agenzia Spaziale Italiana)
RESPONSIBLE FOR METADATA ASI (Agenzia Spaziale Italiana)
CURRENT STATION CONFIGURATION orte00ita_20240718.log
STATUS IN EPN included since 04-02-2024
DATA LICENSE CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI) https://doi.org/10.24414/ROB-EUREF-ORTE00ITA
LAST AVAILABLE DATA 03-11-2024
LAST RECEIVER LEICA GR30 (01-03-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA LEIAR20/NONE (30-07-2019 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEK, UPA
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 23-10-2023.

RINEX V2.11
Daily
(data calendar)

No recent data available

RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 302/2024 78.57%
BEV 287/2024 25%
BKGE 308/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 288/2024 (J) 0% 0%
BKGE 309/2024 (J) 92.86% 88.69%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

ORTE00ITA0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/04 11:39 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/11/04 11:39 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+SBAS)

    2024/11/04 11:39 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/04 13:06 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/11/04 13:06 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/03 14:38 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/11/03 14:38 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

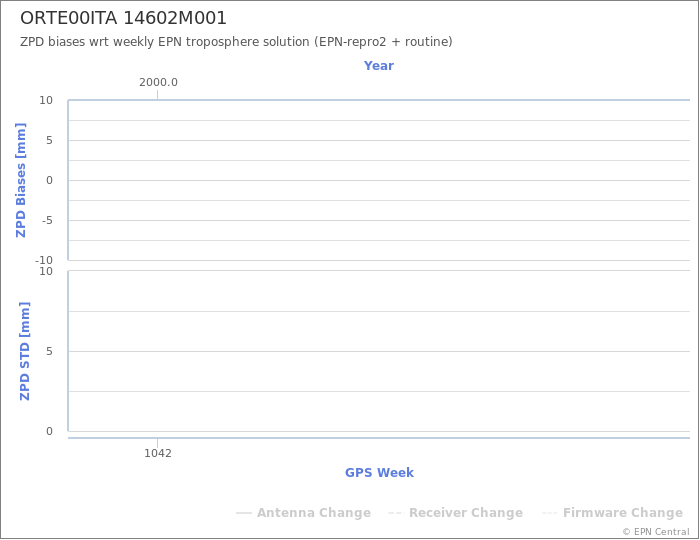

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
