EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	NMA (Norwegian Mapping Authority)
RESPONSIBLE FOR METADATA	NMA (Norwegian Mapping Authority)
CURRENT STATION CONFIGURATION	nyal00nor_20210927.log
STATUS IN EPN	included since 31-12-1995
LAST AVAILABLE DATA	19-04-2024
LAST RECEIVER	TRIMBLE NETR9 (24-09-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS
LAST ANTENNA	AOAD/M_B/DOME (01-01-1993 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	GFZ, NKG, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 17-03-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station NYAL00NOR
Last ETRF2000 position valid from 249/2001 to 316/2022 expressed at epoch 001/2010
X = 1202430.849 m	Vx = 0.0015 m/y
Y = 252626.649 m	Vy = 0.0005 m/y
Z = 6237767.550 m	Vz = 0.0069 m/y

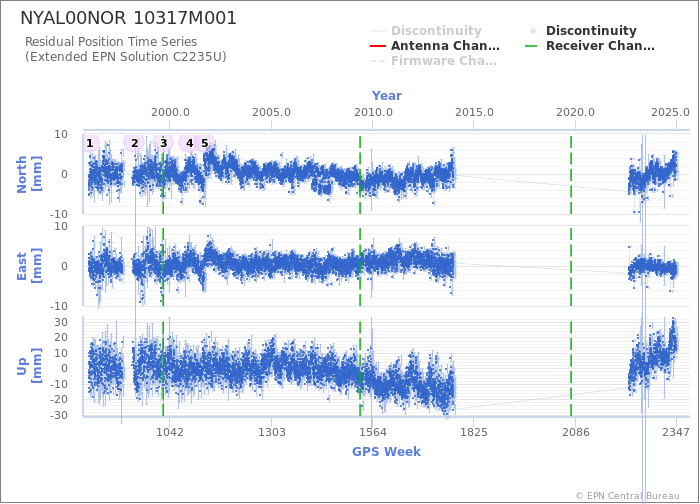

Position time series

Tropospheric Delays

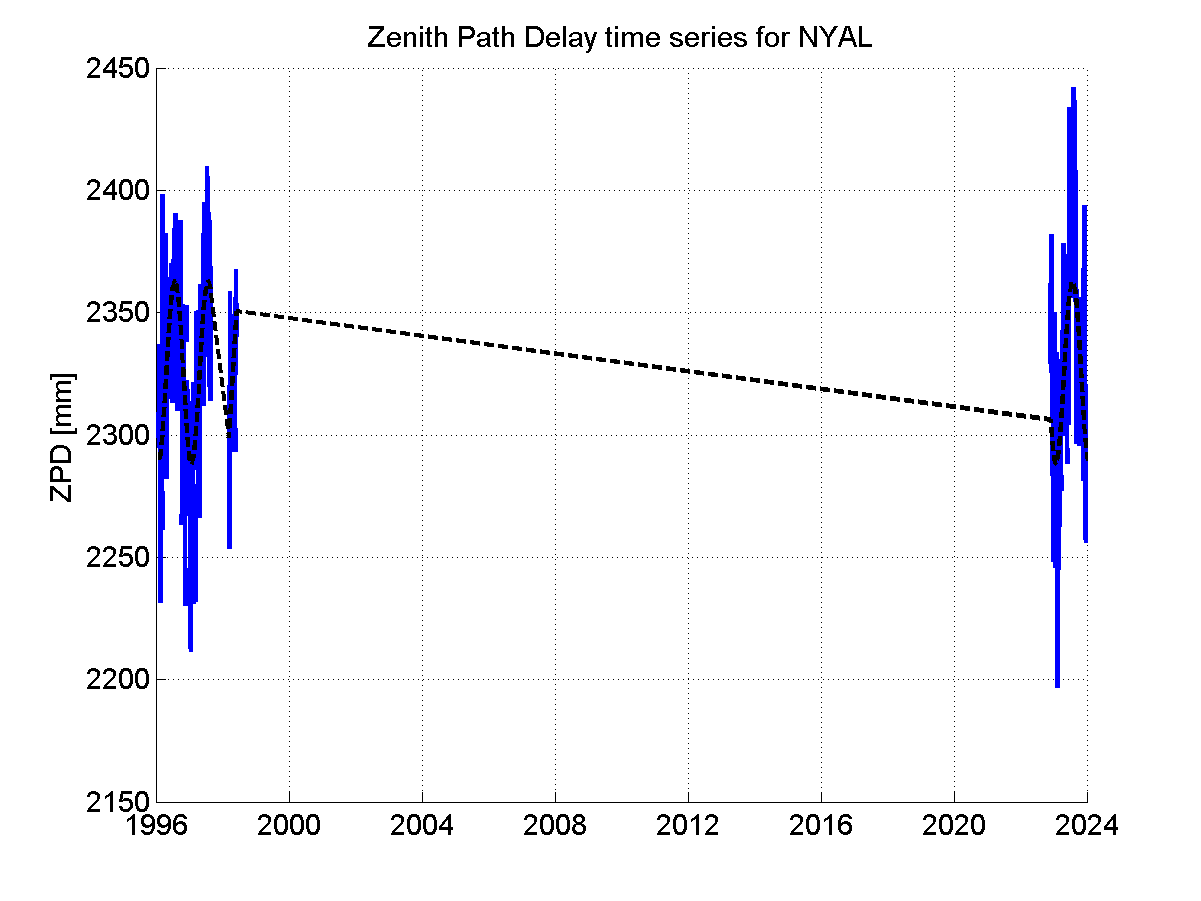

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

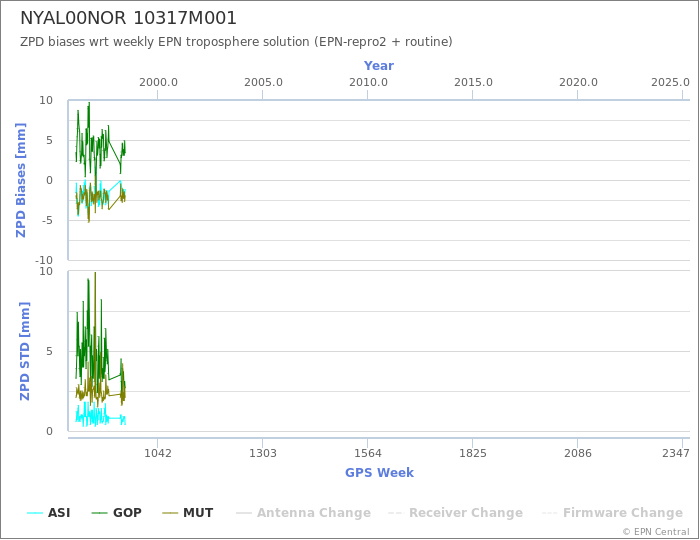

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

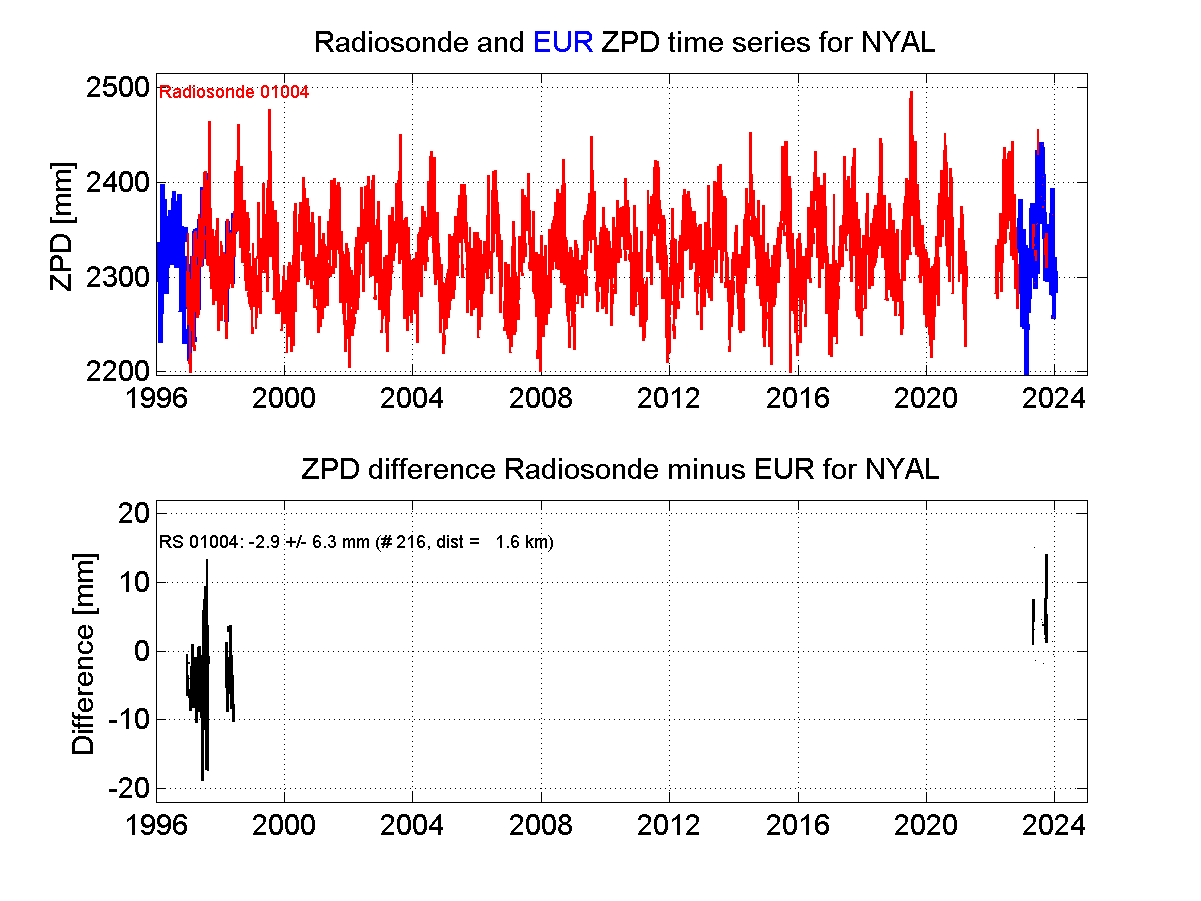

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Ny-Alesund, Norway (NYAL00NOR)
