EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	NPL (National Physical Laboratory)
RESPONSIBLE FOR METADATA	NPL (National Physical Laboratory)
CURRENT STATION CONFIGURATION	npld00gbr_20071214.log
STATUS IN EPN	former since 03-02-2008
LAST AVAILABLE DATA	15-12-2007 (decommissioned station)
LAST RECEIVER	ASHTECH Z-XII3T (03-07-2003 to 15-12-2007)
SET TO TRACK	GPS
LAST ANTENNA	AOAD/M_T/NONE (15-08-2000 to 15-12-2007)
INDIVIDUAL CALIBRATION(S)	none

Data Provided

RINEX V2.11

Daily

(data calendar)

Data centres	Last data
EPNCB (historical)	348/2007
BKGI	349/2007

Hourly

No recent data available

RINEX Data Quality

Daily tracking performances

Daily tracking performances

Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station NPLD00GBR
Last ETRF2000 position valid from 254/2004 to 349/2007 expressed at epoch 001/2010
X = 3985500.542 m	Vx = -0.0008 m/y
Y = -23625.677 m	Vy = 0.0000 m/y
Z = 4962941.476 m	Vz = -0.0012 m/y

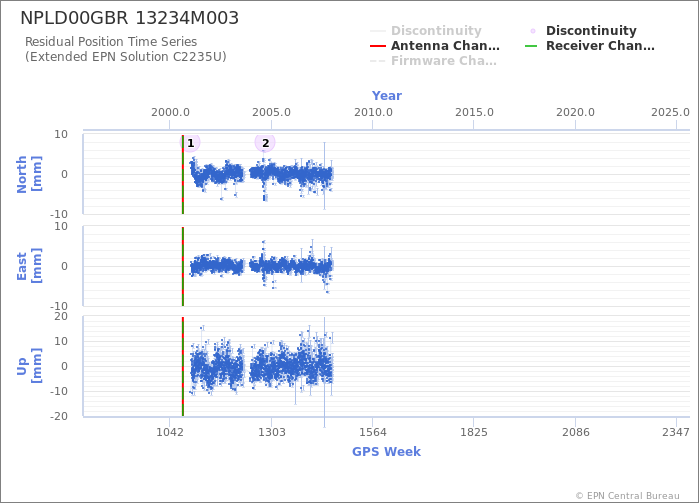

Position time series

Position time series

Tropospheric Delays

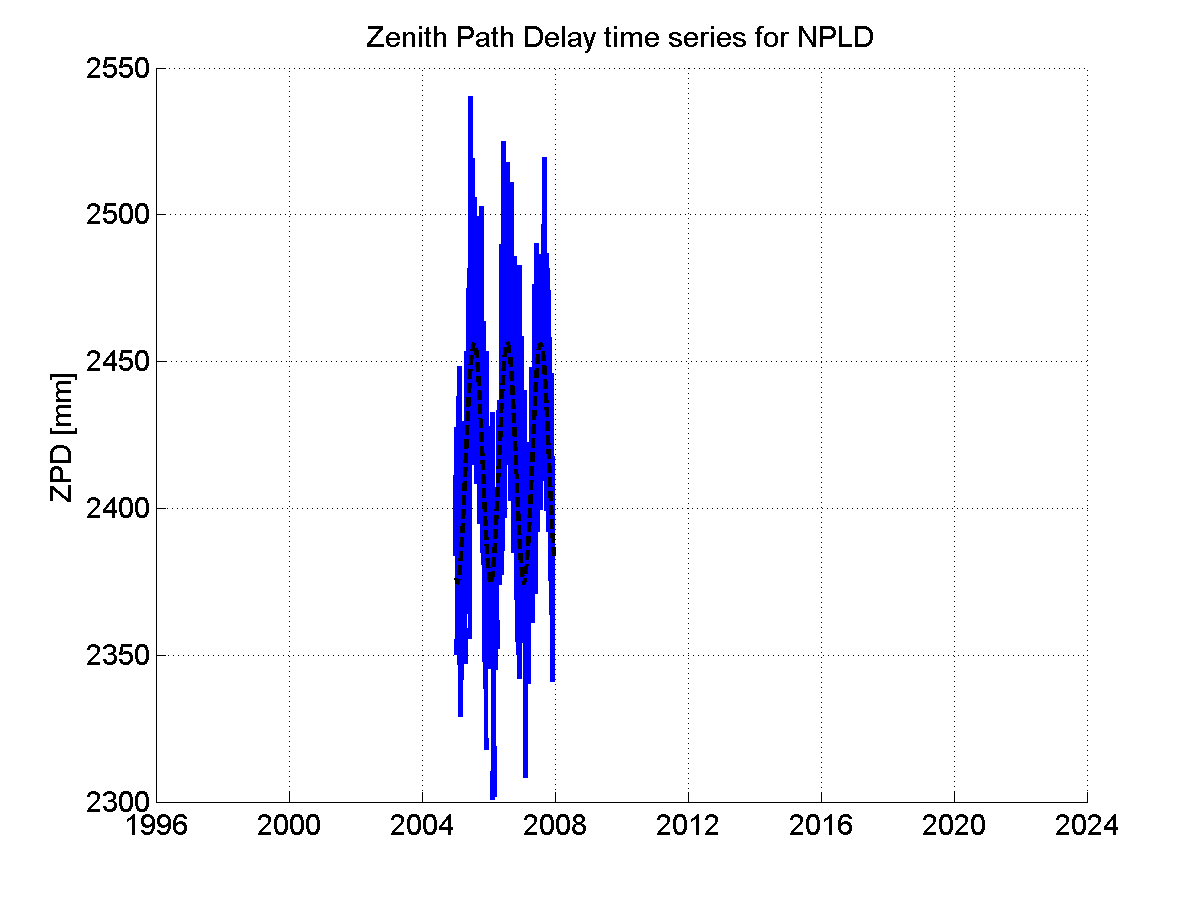

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

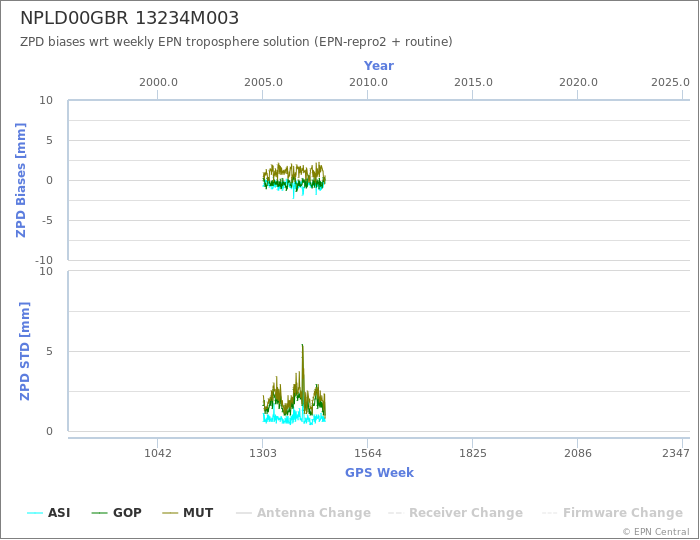

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

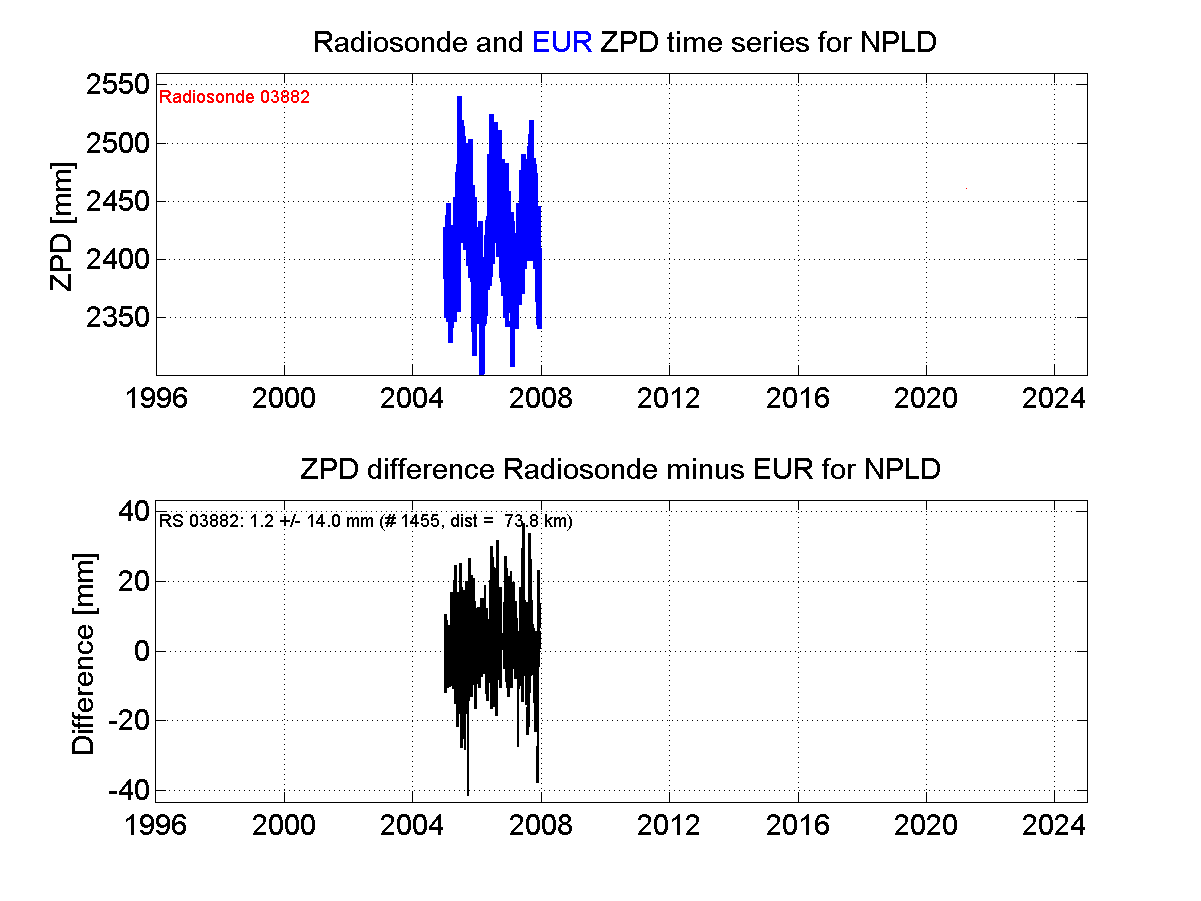

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
