EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	NMA (Norwegian Mapping Authority)
RESPONSIBLE FOR METADATA	NMA (Norwegian Mapping Authority)
CURRENT STATION CONFIGURATION	nabg00nor_20220808.log
STATUS IN EPN	included since 16-05-2021
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	TRIMBLE NETR9 (25-11-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM59900.00/SCIS (01-09-2019 to now)
INDIVIDUAL CALIBRATION(S)	TRM59900.00/SCIS (SN: 5506362018) from 2019-09-01 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, E01, E05, E06, E07, E08, C01, C06, C07, J01, J02, J05, J06, S01, S05, date: 2015-10-14)
DATA ROUTINELY ANALYSED BY	BEV, BKG, GFZ, NKG
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 17-03-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

NABG00NOR0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM7) : stream temporarily unavailable

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM7)
2024/04/18 21:08 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS)
2024/04/18 21:08 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.52,21/JUL/2021) wrt site log (5.52)
2024/04/18 21:08 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0.11039 m)
2024/04/18 21:08 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2103 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM7)
2024/04/19 02:12 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS)
2024/04/19 02:12 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.52,21/JUL/2021) wrt site log (5.52)
2024/04/19 02:12 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0.11039 m)
2024/04/19 02:12 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2103 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

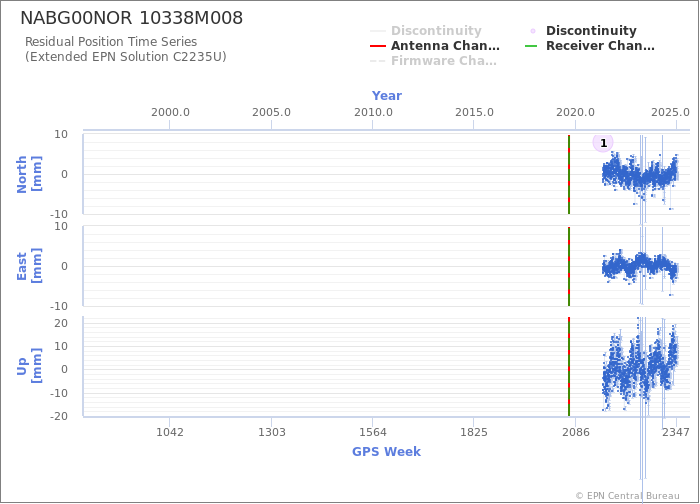

Position, Velocity & Time Series

EUREF is providing only positions for the station NABG00NOR
Last ETRF2000 position valid from 136/2021 to 316/2022 expressed at epoch 019/2022
X = 1201009.782 m
Y = 252157.926 m
Z = 6238022.089 m
