EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ASI (Agenzia Spaziale Italiana)
RESPONSIBLE FOR METADATA	ASI (Agenzia Spaziale Italiana)
CURRENT STATION CONFIGURATION	mat100ita_20240228.log
STATUS IN EPN	included since 29-12-2019
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	LEICA GR30 (28-02-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR20/NONE (05-07-2017 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEK, BEV, BKG, LPT, UPA
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 03-08-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

MAT100ITA0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/18 22:32 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/18 22:32 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+SBAS)
2024/04/18 22:32 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/04/18 22:32 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.12225 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/18 20:29 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/18 20:29 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/04/18 20:29 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.12225 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/19 01:36 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/19 01:36 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/04/19 01:36 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.12225 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing only positions for the station MAT100ITA
Last ETRF2000 position valid from 364/2019 to 316/2022 expressed at epoch 149/2021
X = 4641951.704 m
Y = 1393053.398 m
Z = 4133280.679 m

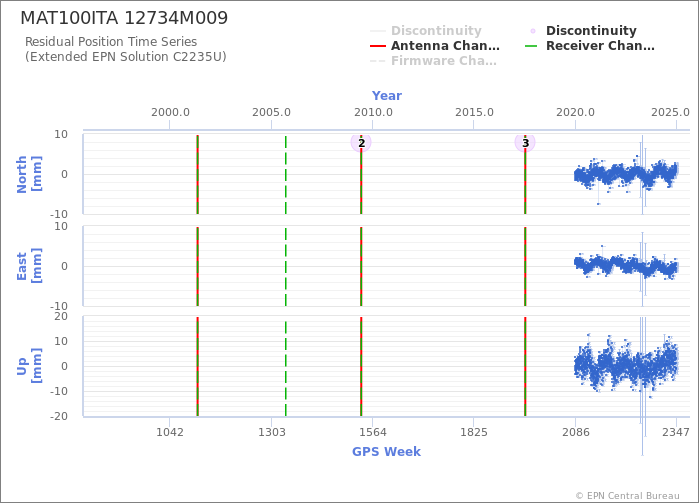

Position time series

Tropospheric Delays

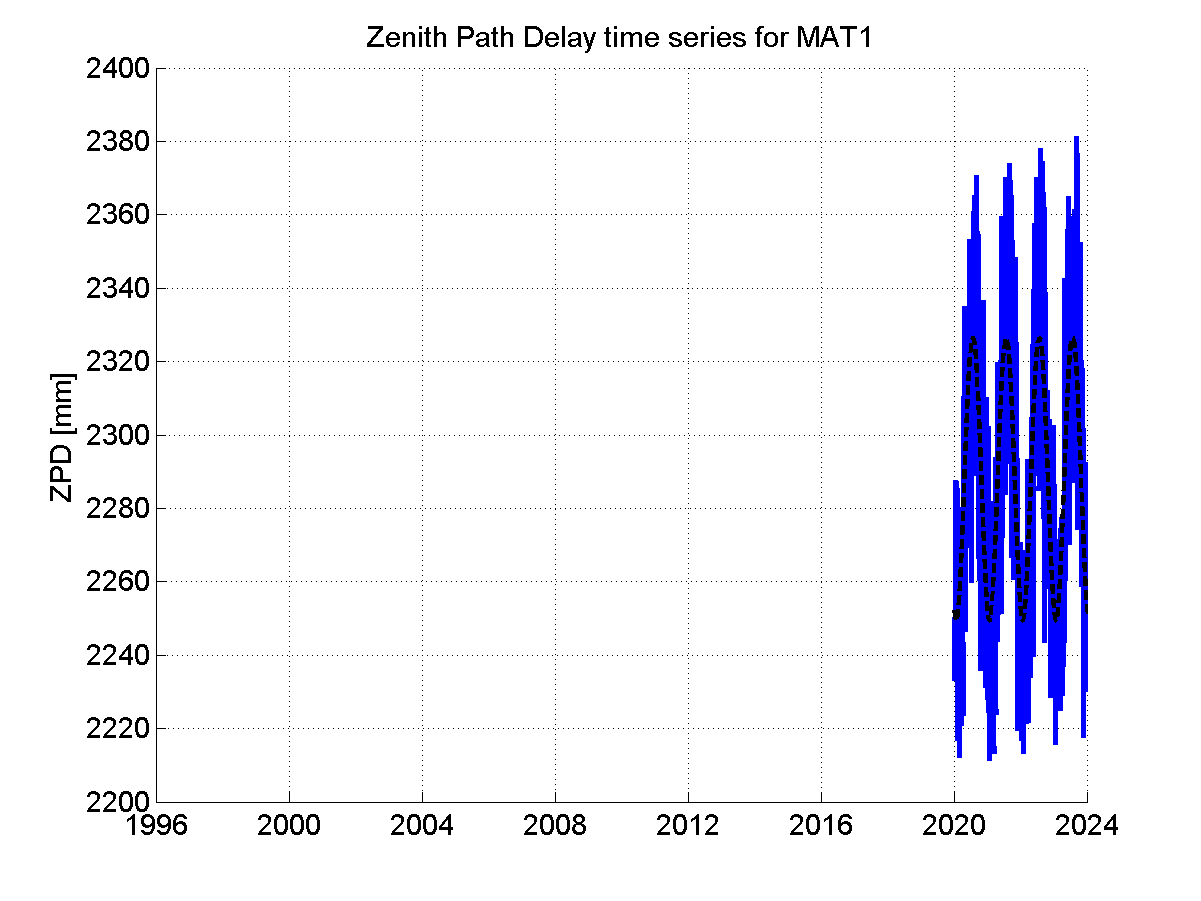

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

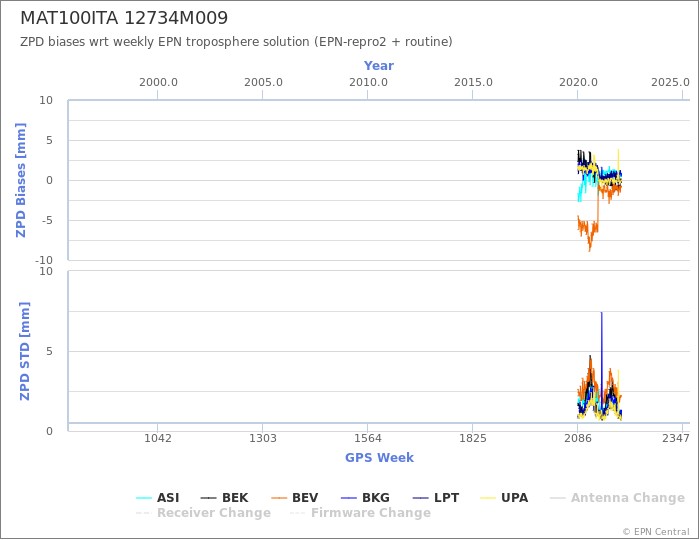

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

MATERA, Italy (MAT100ITA)
