EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	AGG (University of Rome 'La Sapienza' Area di Geodesia e Geomatica)
RESPONSIBLE FOR METADATA	AGG (University of Rome 'La Sapienza' Area di Geodesia e Geomatica)
CURRENT STATION CONFIGURATION	m0se00ita_20231205.log
STATUS IN EPN	included since 01-07-2007
LAST AVAILABLE DATA	15-04-2024
LAST RECEIVER	LEICA GR50 (30-10-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (13-04-2012 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 725219) from 2012-04-13 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2011-08-17)
DATA ROUTINELY ANALYSED BY	ASI, BEK, MUT, UPA
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 08-05-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

M0SE00ITA0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/15 22:15 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/15 22:15 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/04/15 22:15 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)
2024/04/15 22:15 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/15 20:14 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/15 20:14 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)
2024/04/15 20:14 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/16 01:13 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/16 01:13 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)
2024/04/16 01:13 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

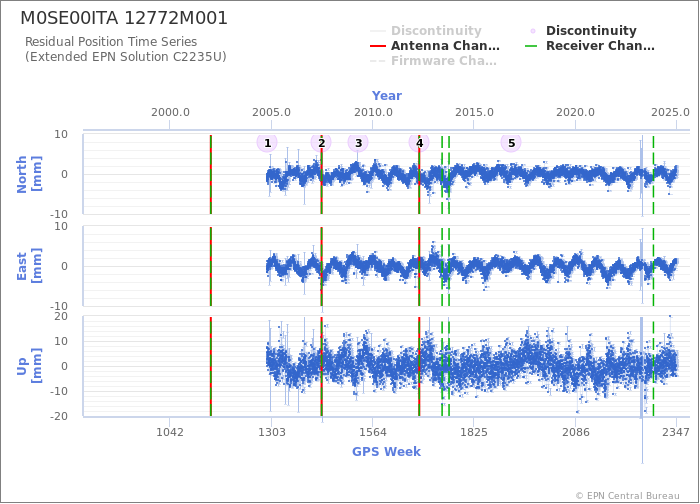

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station M0SE00ITA
Last ETRF2000 position valid from 305/2016 to 316/2022 expressed at epoch 001/2010
X = 4642432.759 m	Vx = -0.0008 m/y
Y = 1028629.167 m	Vy = -0.0016 m/y
Z = 4236854.008 m	Vz = -0.0001 m/y
