EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	RESIF (Réseau sismologique et géodésique francais, CNRS)
RESPONSIBLE FOR METADATA	LIENSS (Observatoire Aquitain des Sciences de l'Univers)
CURRENT STATION CONFIGURATION	lroc00fra_20230612.log
STATUS IN EPN	included since 12-05-2002
LAST AVAILABLE DATA	16-04-2024
LAST RECEIVER	LEICA GR25 (17-04-2019 to now)
SET TO TRACK	GPS+GLO+GAL+SBAS
LAST ANTENNA	ASH701945B_M/NONE (23-11-2001 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	IGE, IGN, MUT, ROB, UPA
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 28-03-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

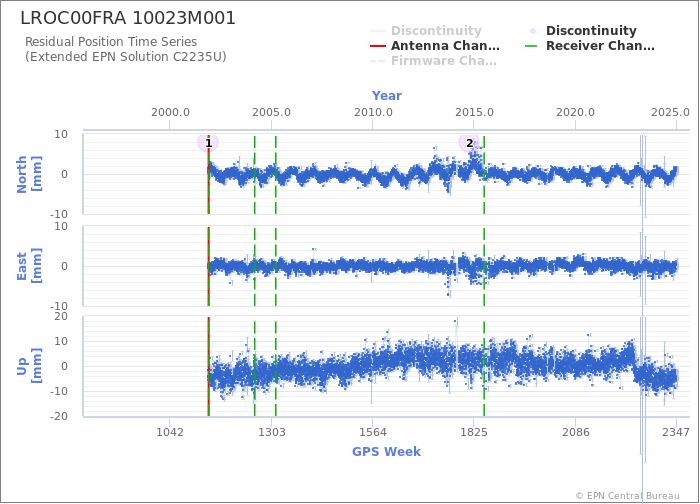

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station LROC00FRA
Last ETRF2000 position valid from 277/2014 to 316/2022 expressed at epoch 001/2010
X = 4424632.791 m	Vx = -0.0007 m/y
Y = -94175.478 m	Vy = -0.0002 m/y
Z = 4577543.854 m	Vz = -0.0008 m/y
