Joensuu, Finland (JOEN00FIN)

RESPONSIBLE AGENCY FGI (National Land Survey of Finland)
RESPONSIBLE FOR METADATA FGI (National Land Survey of Finland)
CURRENT STATION CONFIGURATION joen00fin_20240418.log
STATUS IN EPN included since 03-11-1996
LAST AVAILABLE DATA 19-04-2024
LAST RECEIVER JAVAD TRE_3 DELTA (18-04-2024 to now)
SET TO TRACK GPS
LAST ANTENNA ASH700936A_M/SNOW (15-06-1995 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY COD, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 19-08-2020.

RINEX V2.11 - GPS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 231/2020 N/A
BEV 023/2020 N/A
BKGE 231/2020 N/A
RINEX V3.04 - GPS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 103/2024 75%
BEV 110/2024 100%
BKGE 110/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 111/2024 (C) 98.81% 98.81%
BKGE 111/2024 (C) 98.81% 85.71%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

JOEN00FIN0 :

  • ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2024/04/19 21:13 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt site log (GPS)

    2024/04/19 21:13 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS)

    2024/04/19 21:13 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SHW40BX5Y0XF0T4F2MW) wrt site log (02880)

    2024/04/19 21:13 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.08961 m)

    2024/04/19 21:13 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1100 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2024/04/19 19:10 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt site log (GPS)

    2024/04/19 19:10 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS)

    2024/04/19 19:10 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SHW40BX5Y0XF0T4F2MW) wrt site log (02880)

    2024/04/19 19:10 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.08961 m)

    2024/04/19 19:10 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1100 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2024/04/20 00:19 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt site log (GPS)

    2024/04/20 00:19 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS)

    2024/04/20 00:19 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SHW40BX5Y0XF0T4F2MW) wrt site log (02880)

    2024/04/20 00:19 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.08961 m)

    2024/04/20 00:19 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1100 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station JOEN00FIN
Last ETRF2000 position valid from 300/1996 to 316/2022
expressed at epoch 001/2010
X = 2564139.455 m Vx = 0.0014 m/y
Y = 1486149.637 m Vy = 0.0015 m/y
Z = 5628951.312 m Vz = 0.0020 m/y

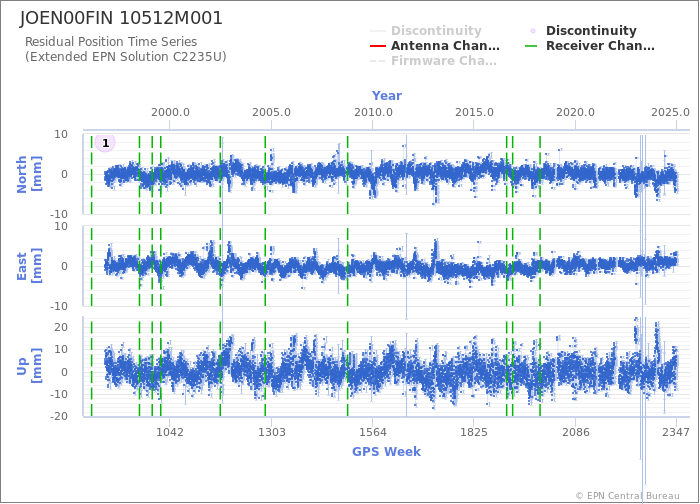

Position time series

Position time series

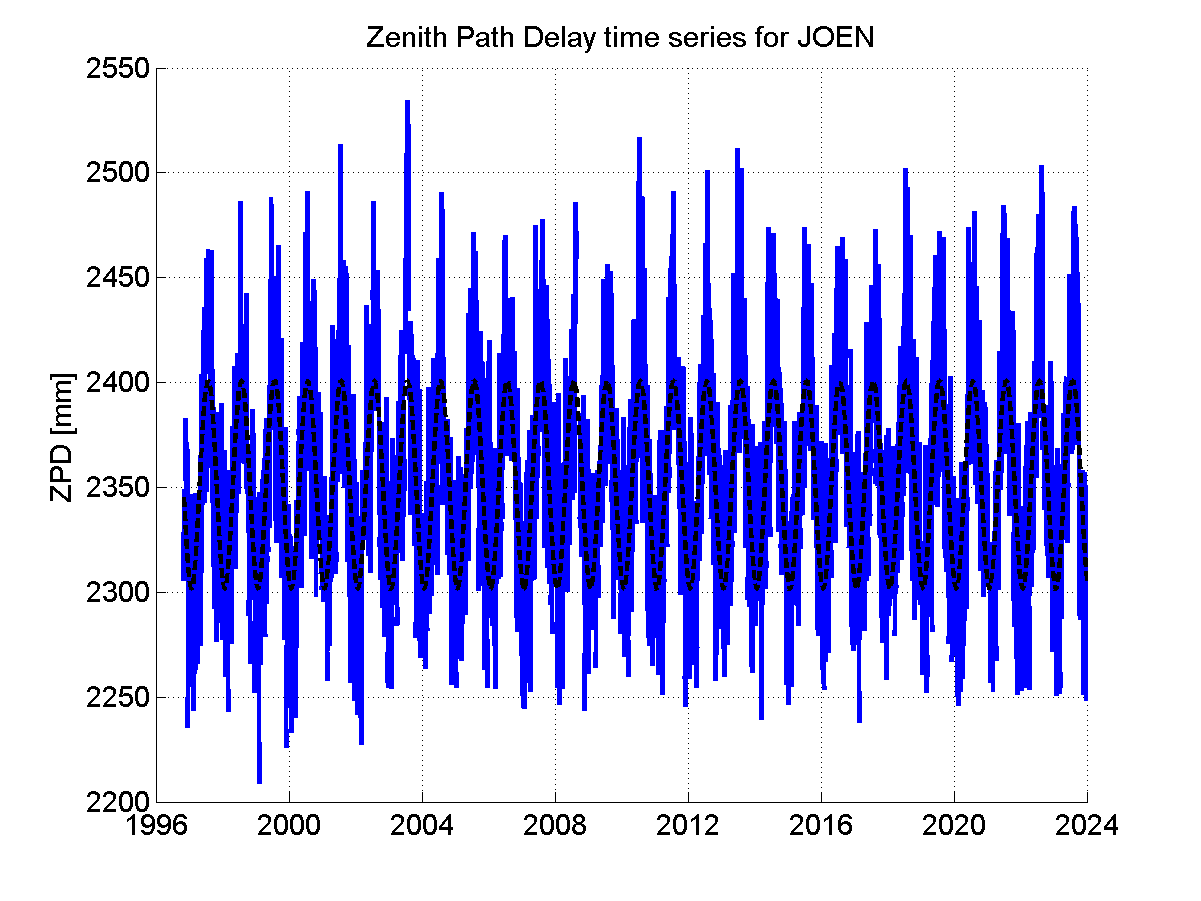

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

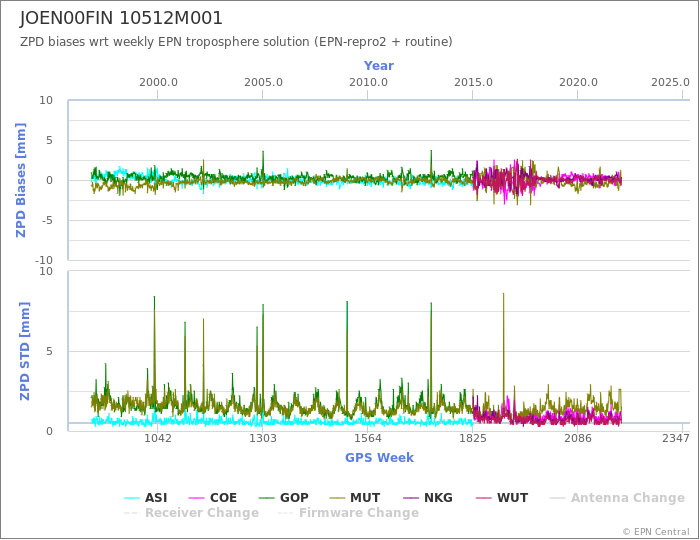

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
