Rabat, Morocco (IAVH00MAR)

RESPONSIBLE AGENCY JPL (Jet Propulsion Laboratory)
RESPONSIBLE FOR METADATA JPL (Jet Propulsion Laboratory)
CURRENT STATION CONFIGURATION iavh00mar_19991115.log
STATUS IN EPN former since 03-01-1999
LAST AVAILABLE DATA 28-12-1998 (decommissioned station)
LAST RECEIVER ROGUE SNR-8000 (12-02-1998 to 28-12-1998)
SET TO TRACK GPS
LAST ANTENNA AOAD/M_T/DOME (12-02-1998 to 28-12-1998)
INDIVIDUAL CALIBRATION(S) none
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 361/1998
BKGI 362/1998
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station IAVH00MAR
Last ETRF2000 position valid from 044/1998 to 362/1998
expressed at epoch 206/2001
X = 5256828.220 m
Y = -633054.322 m
Z = 3544324.340 m

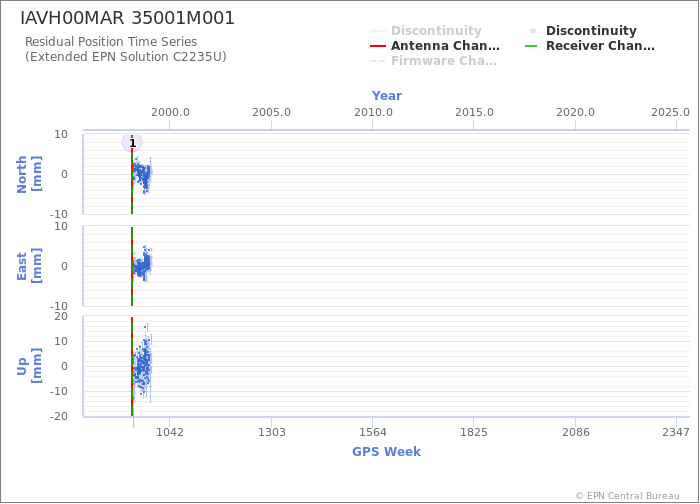

Position time series

Position time series

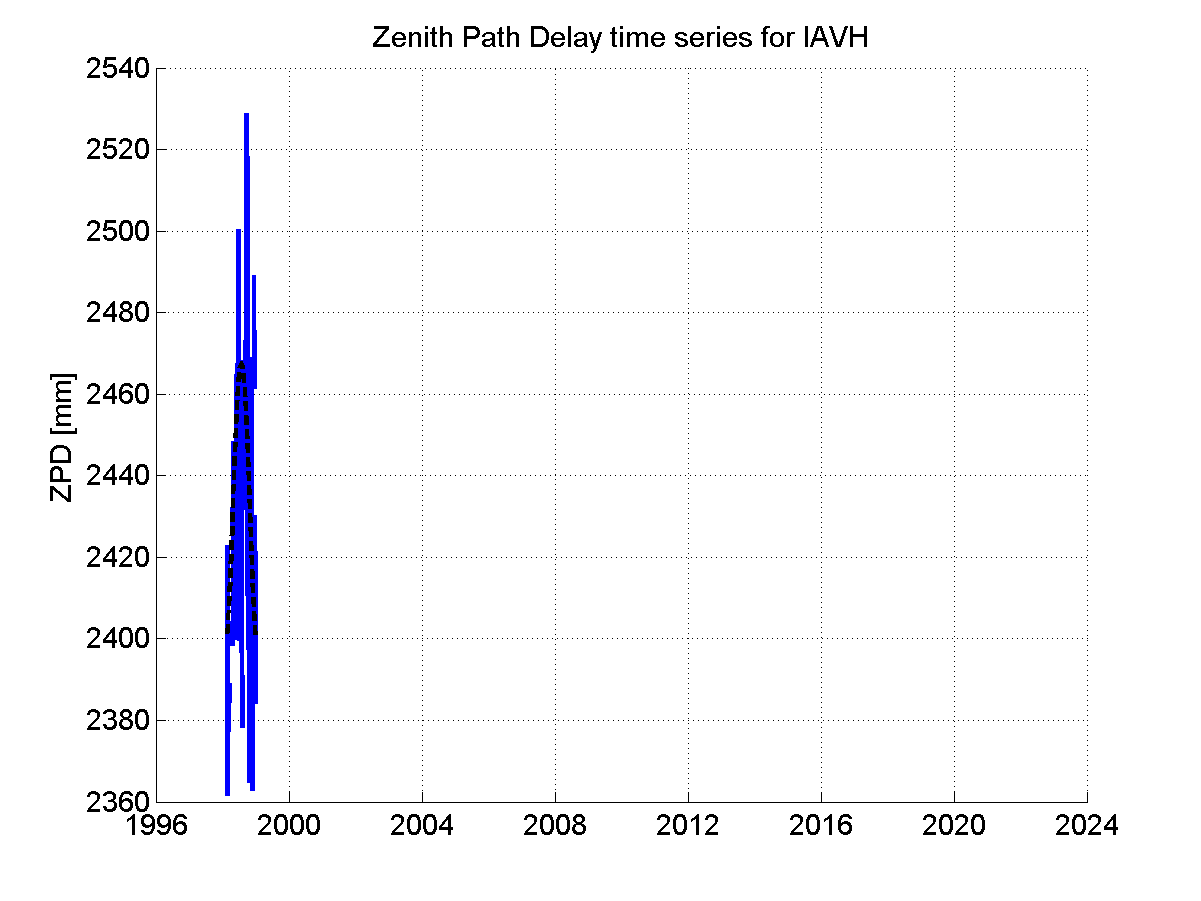

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

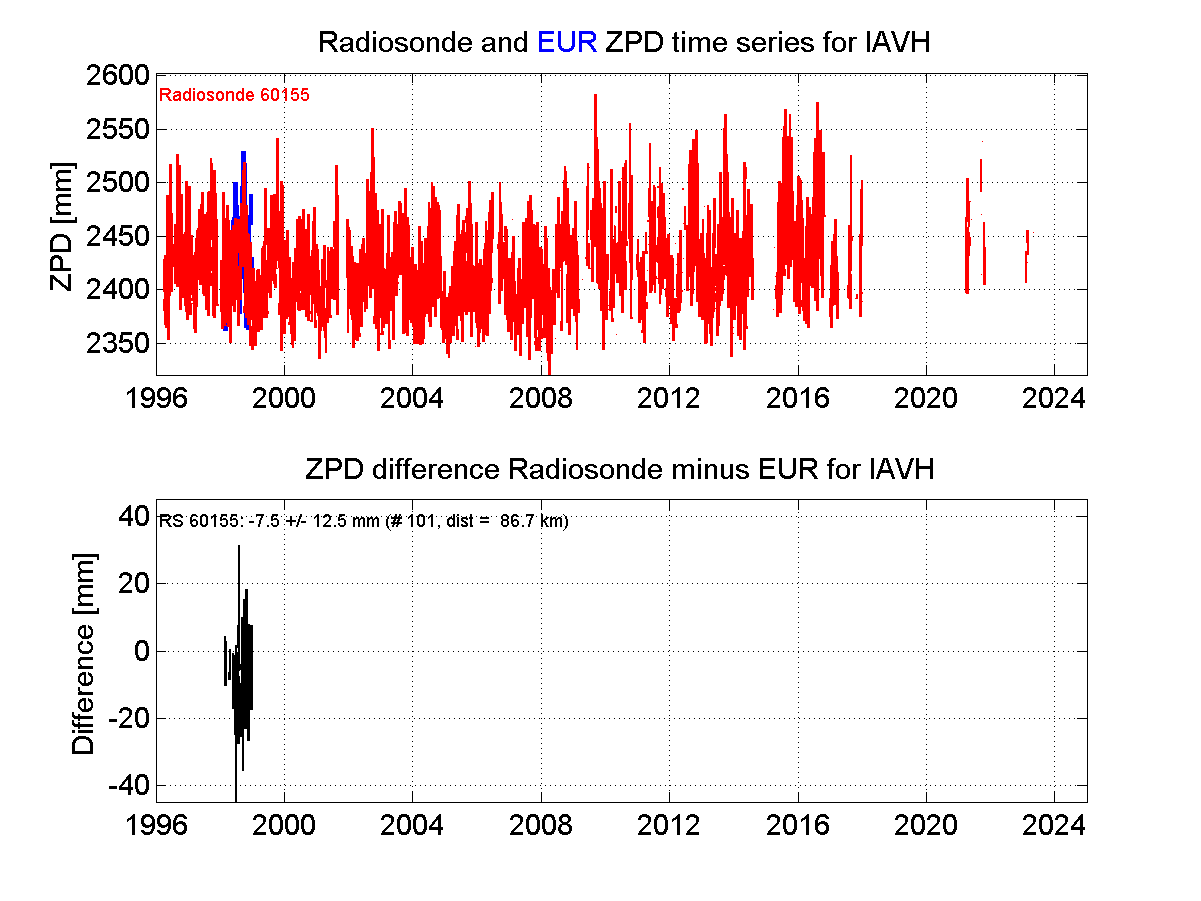

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
