Hoernum / Island Sylt, Germany (HOE200DEU)

RESPONSIBLE AGENCY BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION hoe200deu_20220905.log
STATUS IN EPN former since 24-05-2015
LAST AVAILABLE DATA 19-05-2015 (decommissioned station)
LAST RECEIVER JAVAD TRE_G3TH DELTA (21-01-2014 to 19-05-2015)
SET TO TRACK GPS+GLO+GAL
LAST ANTENNA LEIAR25.R4/LEIT (28-05-2013 to 19-05-2015)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R3/LEIT (SN: 10170026) from 2010-10-20 to 2013-05-28 :
  • LEIAR25.R4/LEIT (SN: 725267) from 2013-05-28 to 2015-05-19 :
  • TPSCR3_GGD/CONE (SN: 2170298) from 2005-07-01 to 2010-10-20 :
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 138/2015
BKGE 139/2015
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station HOE200DEU
Last ETRF2000 position valid from 363/2013 to 139/2015
expressed at epoch 001/2010
X = 3650022.969 m Vx = -0.0006 m/y
Y = 532050.347 m Vy = -0.0001 m/y
Z = 5185984.299 m Vz = -0.0011 m/y

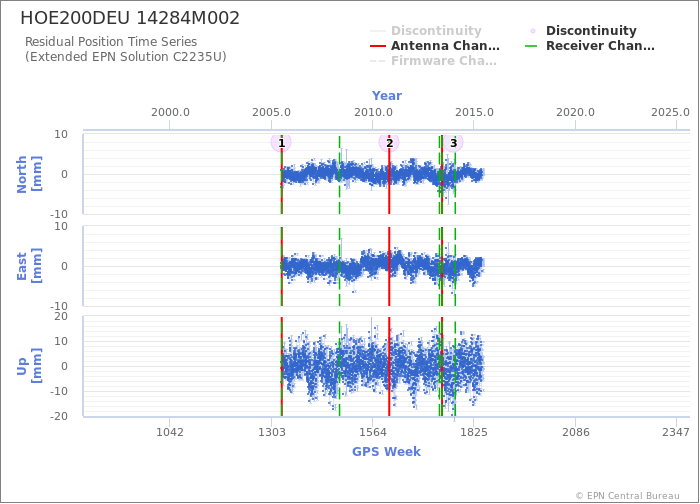

Position time series

Position time series

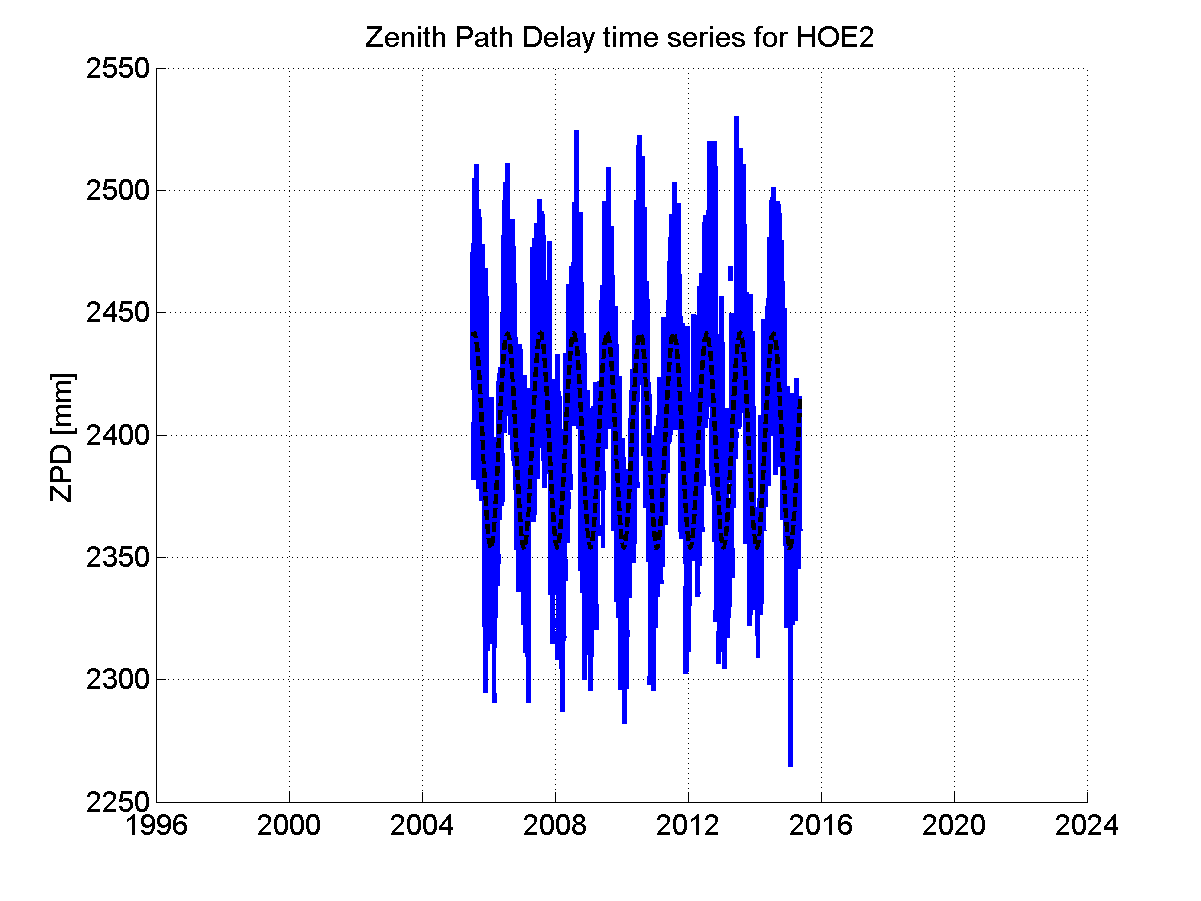

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

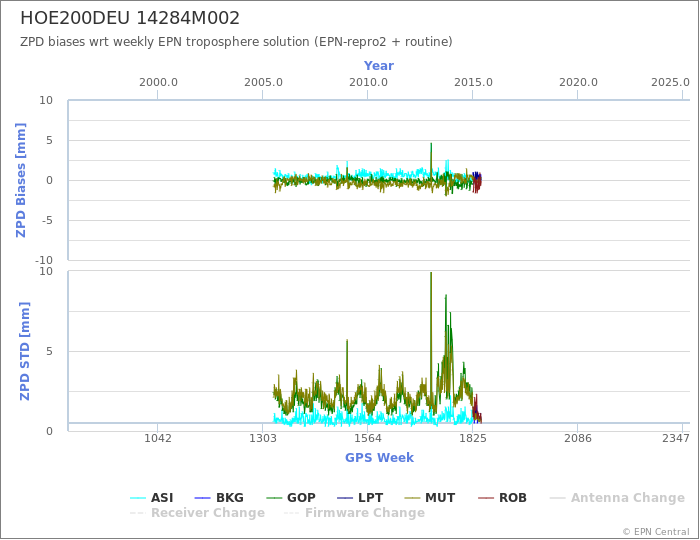

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
