EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	DGT (Direcao-Geral do Territorio)
RESPONSIBLE FOR METADATA	DGT (Direcao-Geral do Territorio)
CURRENT STATION CONFIGURATION	gaia00prt_20250414.log
STATUS IN EPN	included since 11-02-2001
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	30-04-2025
LAST RECEIVER	TRIMBLE ALLOY (14-04-2025 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	TRM159900.00/NONE (26-01-2021 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	IGE, IGN, MUT, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 14-07-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

GAIA00PRT0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2025/04/30 12:43 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2025/04/30 12:43 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2025/05/01 09:29 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2025/05/01 09:29 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2025/04/30 10:53 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2025/04/30 10:53 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

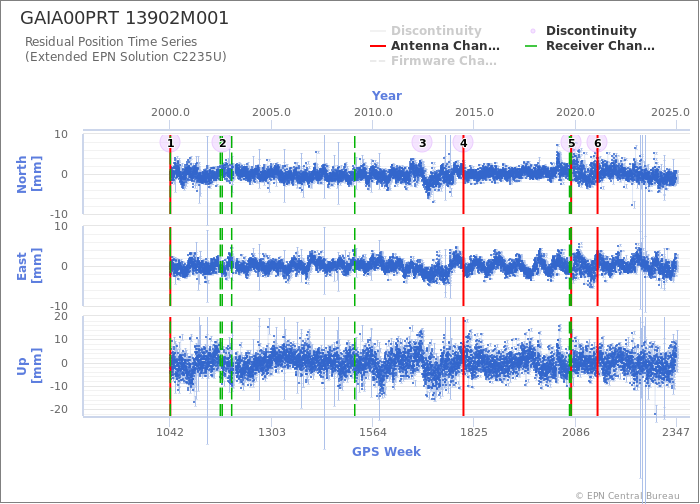

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station GAIA00PRT
Last ETRF2000 position valid from 027/2021 to 316/2022 expressed at epoch 001/2010
X = 4759095.639 m	Vx = -0.0011 m/y
Y = -718818.893 m	Vy = -0.0007 m/y
Z = 4171491.124 m	Vz = -0.0006 m/y
