EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	DGT (Direcao-Geral do Territorio)
RESPONSIBLE FOR METADATA	DGT (Direcao-Geral do Territorio)
CURRENT STATION CONFIGURATION	flrs00prt_20240219.log
STATUS IN EPN	included since 31-08-2008
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	15-01-2025
LAST RECEIVER	TRIMBLE ALLOY (19-02-2024 to now)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	TRM159900.00/NONE (20-10-2021 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BKG, COD, IGE, IGN
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 14-07-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

FLRS00PRT0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2025/01/16 12:27 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL) wrt source table (GPS+GLO)
2025/01/16 12:27 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.6233 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2025/01/16 09:16 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.6233 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2025/01/16 10:42 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.6233 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

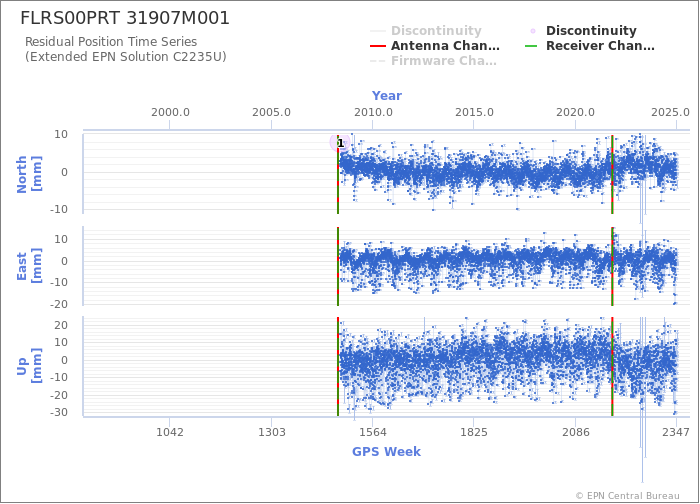

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station FLRS00PRT
Last ETRF2000 position valid from 151/2008 to 315/2022 expressed at epoch 001/2010
X = 4221530.137 m	Vx = -0.0167 m/y
Y = -2549242.639 m	Vy = -0.0194 m/y
Z = 4031397.996 m	Vz = 0.0023 m/y
