Evpatoria, Ukraine (EVPA00UKR)

RESPONSIBLE AGENCY MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
RESPONSIBLE FOR METADATA MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
CURRENT STATION CONFIGURATION evpa00ukr_20220504.log
STATUS IN EPN former since 06-04-2014
LAST AVAILABLE DATA 31-03-2014 (decommissioned station)
LAST RECEIVER NOV OEMV3 (01-02-2011 to 01-04-2014)
SET TO TRACK GPS+GLO
LAST ANTENNA NOV702GG/NONE (01-02-2011 to 01-04-2014)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 090/2014
BKGE 090/2014
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station EVPA00UKR
Last ETRF2000 position valid from 033/2011 to 090/2014
expressed at epoch 001/2010
X = 3767253.866 m Vx = -0.0001 m/y
Y = 2461876.126 m Vy = -0.0006 m/y
Z = 4504591.587 m Vz = -0.0004 m/y

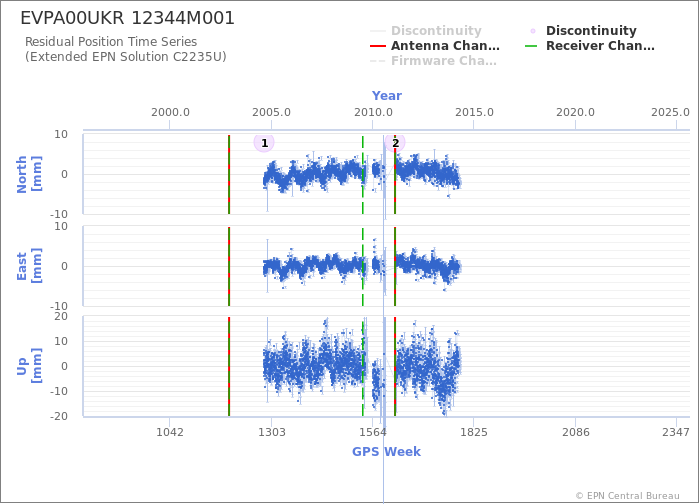

Position time series

Position time series

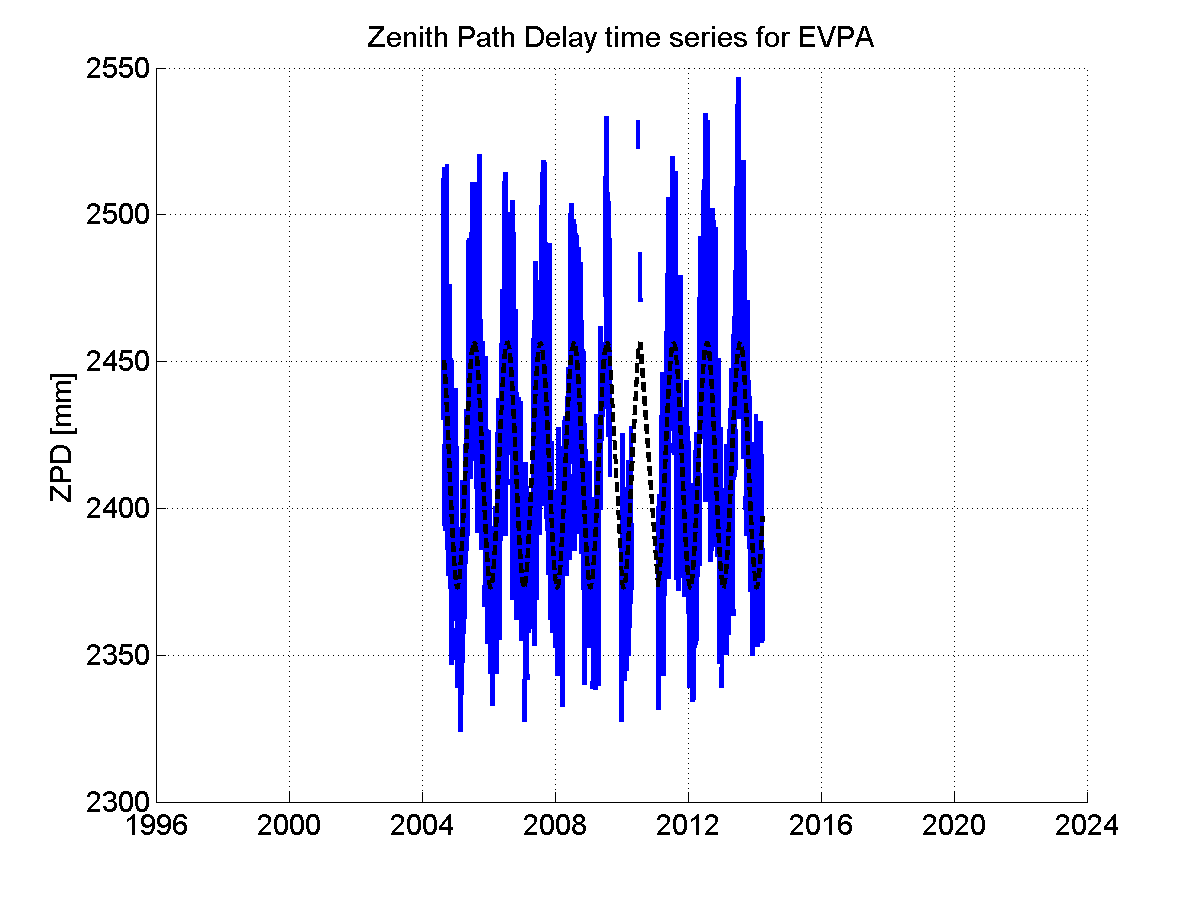

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

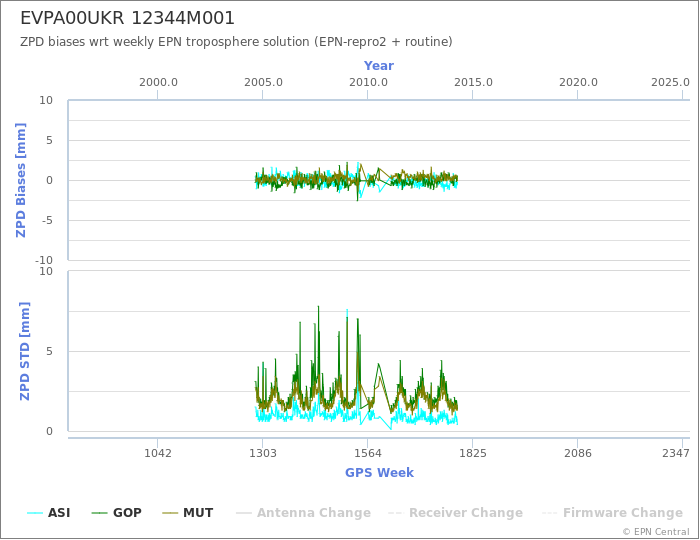

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

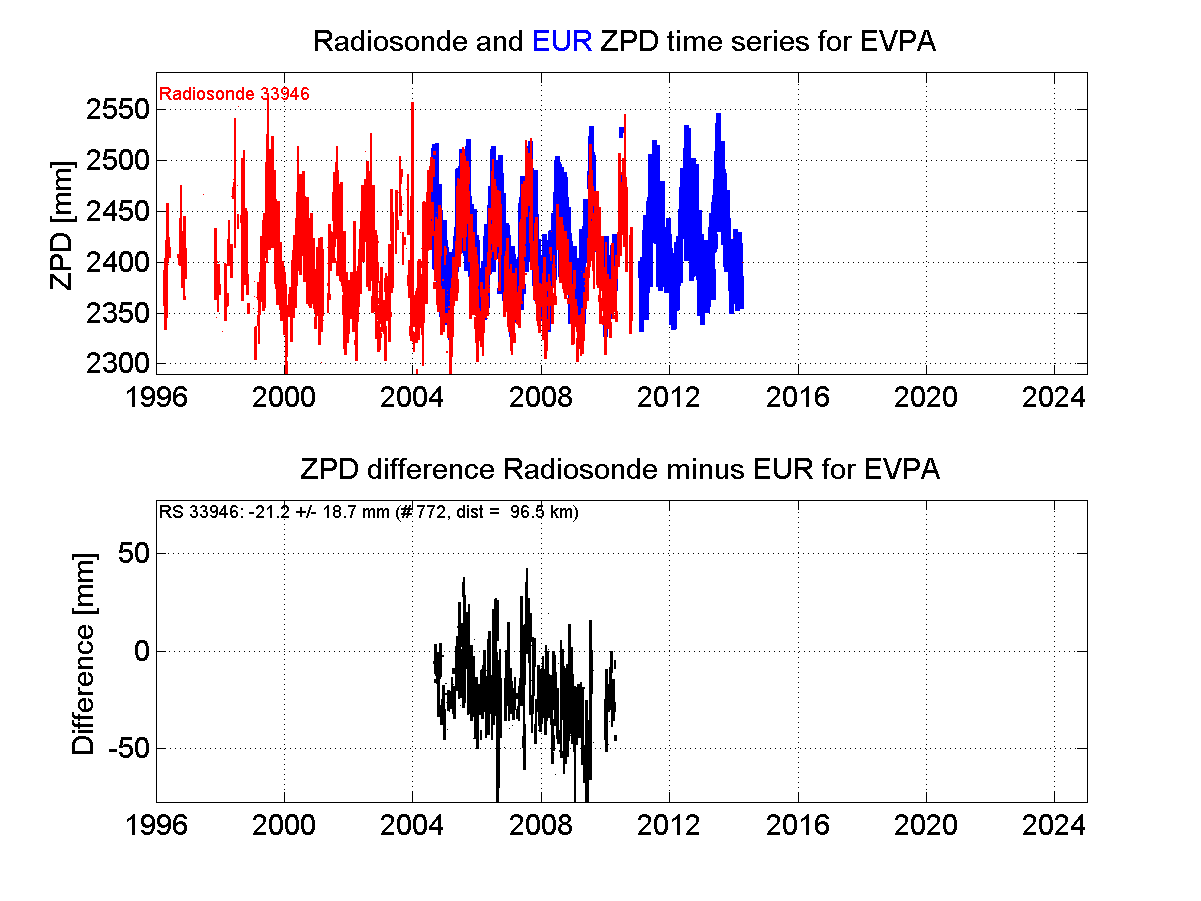

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
