Dubrovnik, Croatia (DUBR00HRV)

RESPONSIBLE AGENCY SGA (State Geodetic Administration)
RESPONSIBLE FOR METADATA SGA (State Geodetic Administration)
CURRENT STATION CONFIGURATION dubr00hrv_20120918.log
STATUS IN EPN former since 23-09-2012
LAST AVAILABLE DATA 22-09-2012 (decommissioned station)
LAST RECEIVER TRIMBLE NETR5 (26-04-2009 to 24-10-2012)
SET TO TRACK GPS+GLO
LAST ANTENNA TRM55971.00/NONE (19-06-2007 to 24-10-2012)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 266/2012
BKGI 266/2012
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station DUBR00HRV
Last ETRF2000 position valid from 357/2008 to 266/2012
expressed at epoch 001/2010
X = 4465940.356 m Vx = -0.0038 m/y
Y = 1460594.219 m Vy = -0.0011 m/y
Z = 4299291.208 m Vz = 0.0015 m/y

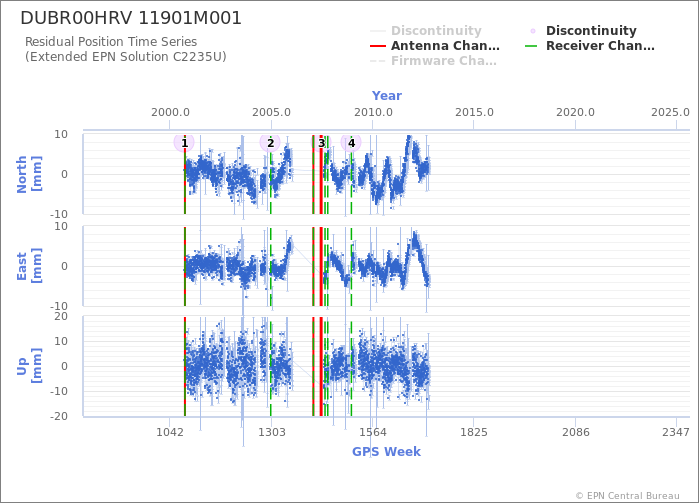

Position time series

Position time series

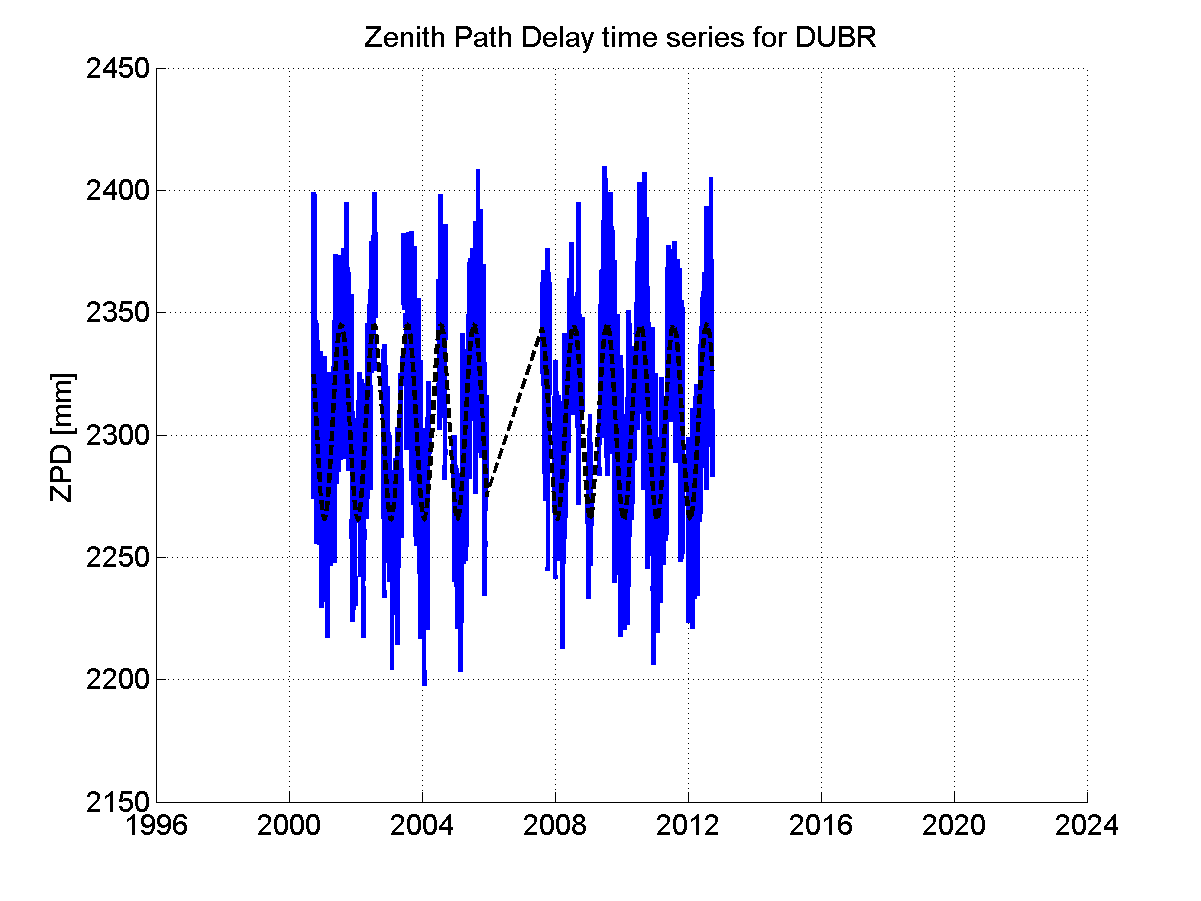

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

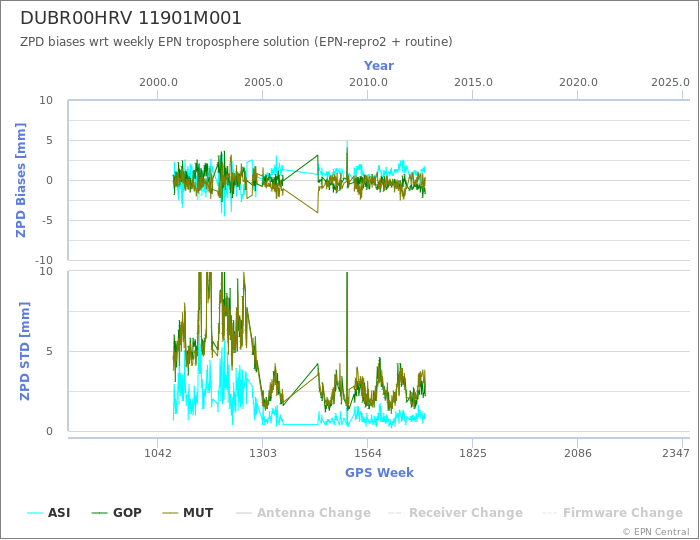

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
