Cagliari, Italy (CAGL00ITA)

RESPONSIBLE AGENCY ASI (Agenzia Spaziale Italiana)
RESPONSIBLE FOR METADATA ASI (Agenzia Spaziale Italiana)
CURRENT STATION CONFIGURATION cagl00ita_20220913.log
STATUS IN EPN former since 22-09-2013
LAST AVAILABLE DATA 19-09-2013 (decommissioned station)
LAST RECEIVER TRIMBLE 4700 (02-03-2004 to 22-09-2013)
SET TO TRACK GPS
LAST ANTENNA TRM29659.00/NONE (11-07-2001 to 22-09-2013)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 262/2013
BKGI 262/2013
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station CAGL00ITA
Last ETRF2000 position valid from 193/2001 to 262/2013
expressed at epoch 001/2010
X = 4893379.081 m Vx = -0.0006 m/y
Y = 772649.509 m Vy = -0.0006 m/y
Z = 4004181.921 m Vz = -0.0005 m/y

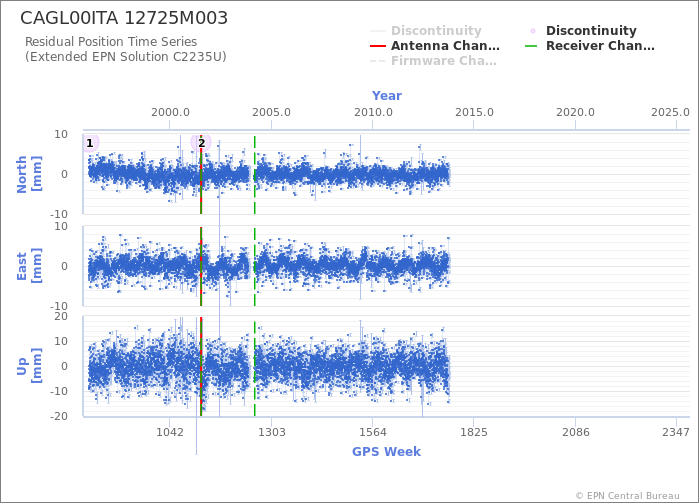

Position time series

Position time series
Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

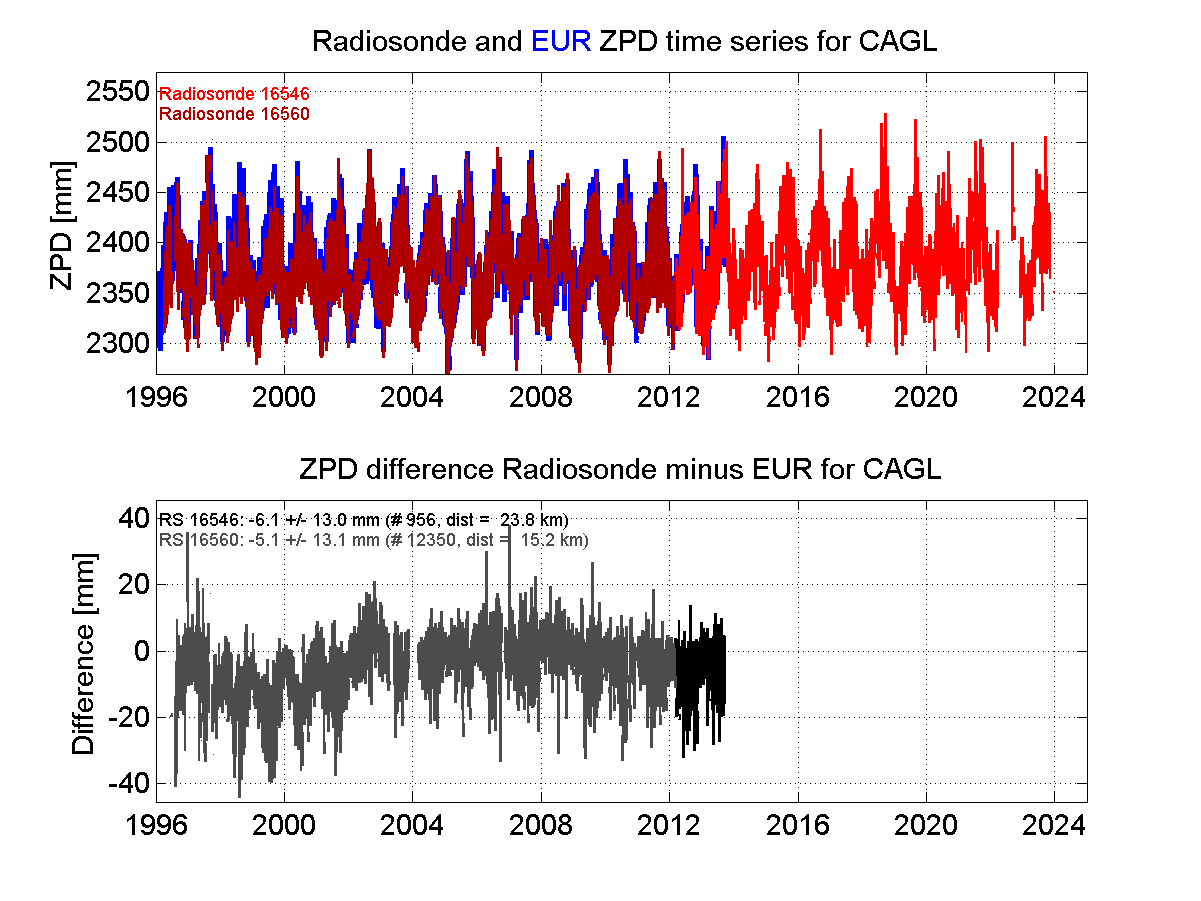

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
