EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	DICAAR (University of Cagliari)
RESPONSIBLE FOR METADATA	DICAAR (University of Cagliari)
CURRENT STATION CONFIGURATION	cag100ita_20250325.log
STATUS IN EPN	included since 31-01-2016
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	30-04-2025
LAST RECEIVER	TPS NET-G5 (25-03-2025 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	TPSPN.A5/NONE (11-09-2013 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, IGE, LPT, SUT, UPA

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 21-04-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station CAG100ITA
Last ETRF2000 position valid from 031/2016 to 316/2022 expressed at epoch 001/2010
X = 4885054.011 m	Vx = -0.0006 m/y
Y = 783345.861 m	Vy = -0.0006 m/y
Z = 4012042.885 m	Vz = -0.0008 m/y

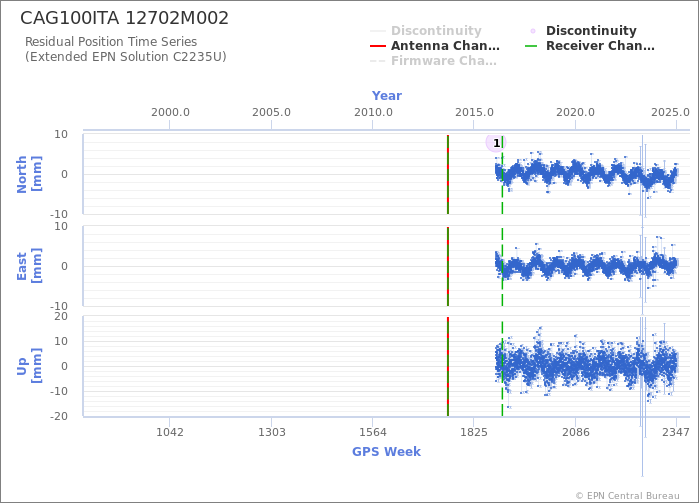

Position time series

Tropospheric Delays

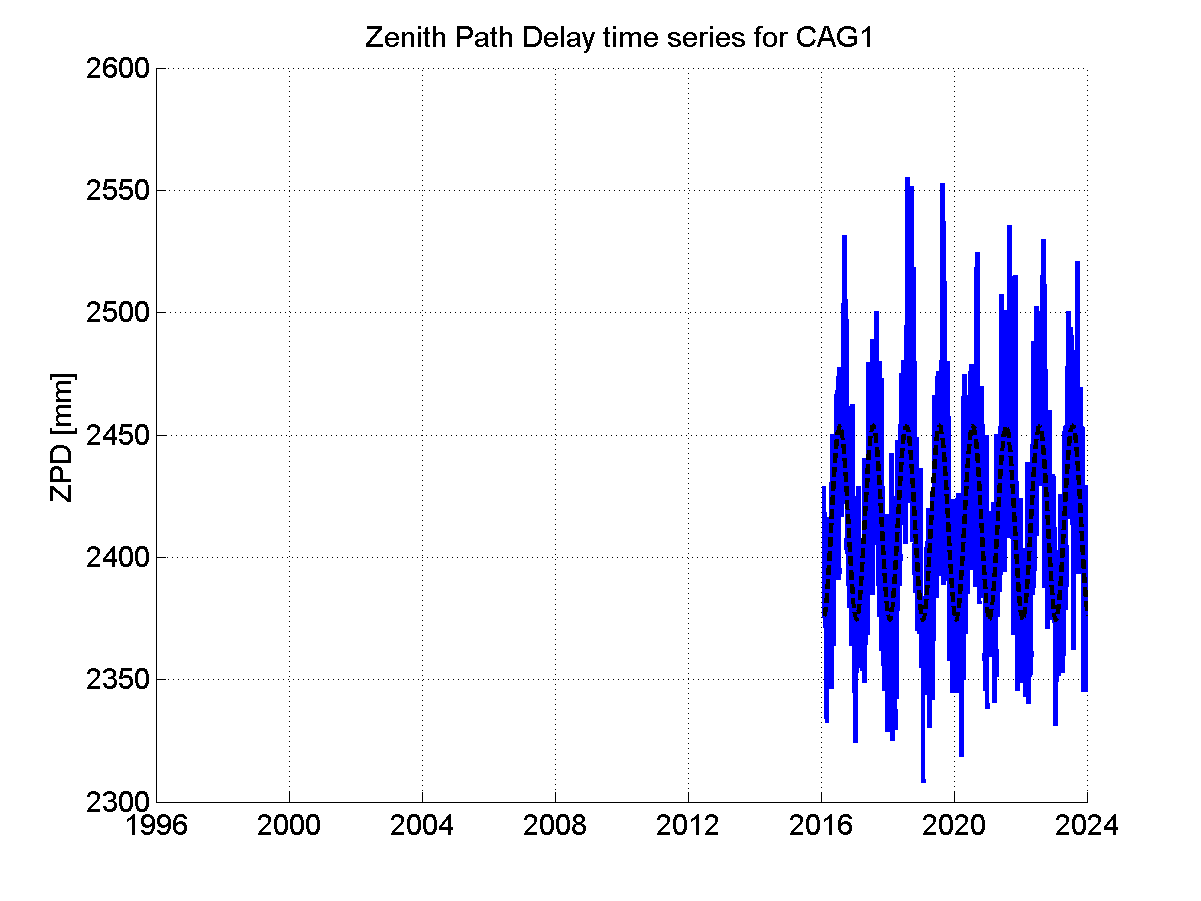

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

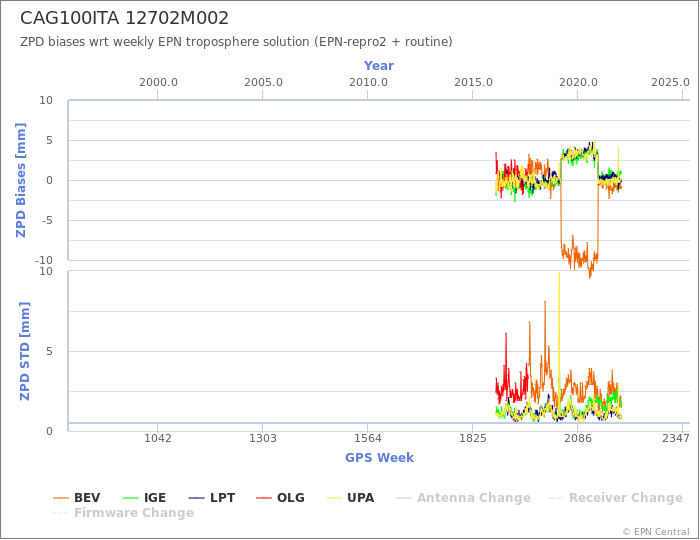

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

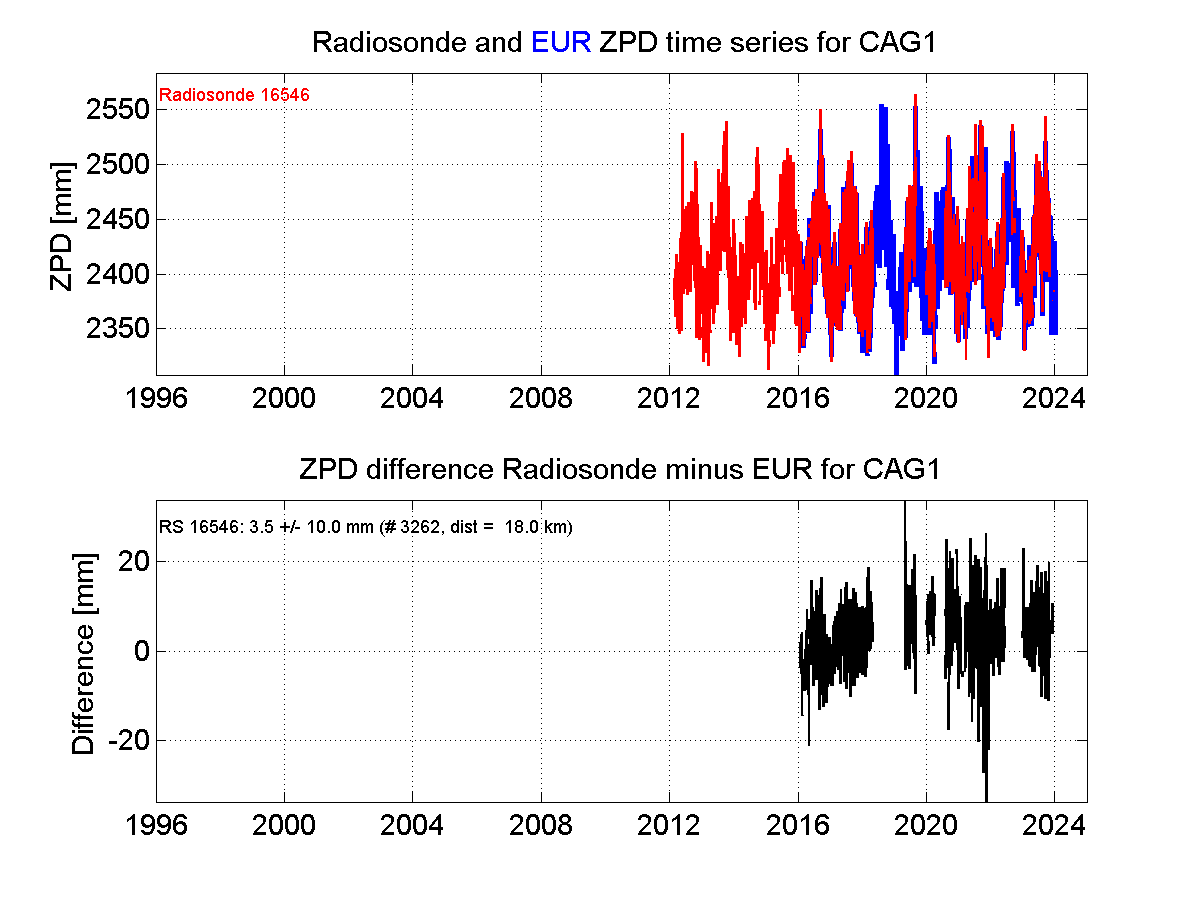

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Cagliari, Italy (CAG100ITA)
