Caen, France (CAEN00FRA)

RESPONSIBLE AGENCY IGN_RGP (Institut National de l'Information Géographique et Forestière)
RESPONSIBLE FOR METADATA IGN_RGP (Institut National de l'Information Géographique et Forestière)
CURRENT STATION CONFIGURATION caen00fra_20220304.log
STATUS IN EPN former since 19-12-2021
LAST AVAILABLE DATA 15-12-2021 (decommissioned station)
LAST RECEIVER LEICA GR25 (13-03-2019 to 15-12-2021)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA TRM57971.00/NONE (17-07-2013 to 15-12-2021)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 16-12-2021.

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 348/2021
BEV 349/2021
BKGE 349/2021
RINEX V3.05 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Last data
EPNCB (historical)348/2021
BEV349/2021
BKGE349/2021
Hourly

No recent data available

Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station CAEN00FRA
Last ETRF2000 position valid from 029/2017 to 348/2021
expressed at epoch 001/2010
X = 4177020.589 m Vx = -0.0016 m/y
Y = -33326.831 m Vy = -0.0006 m/y
Z = 4803950.211 m Vz = -0.0012 m/y

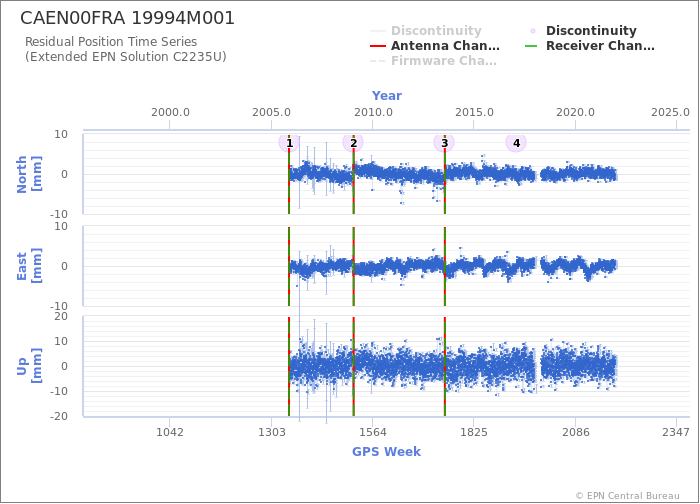

Position time series

Position time series

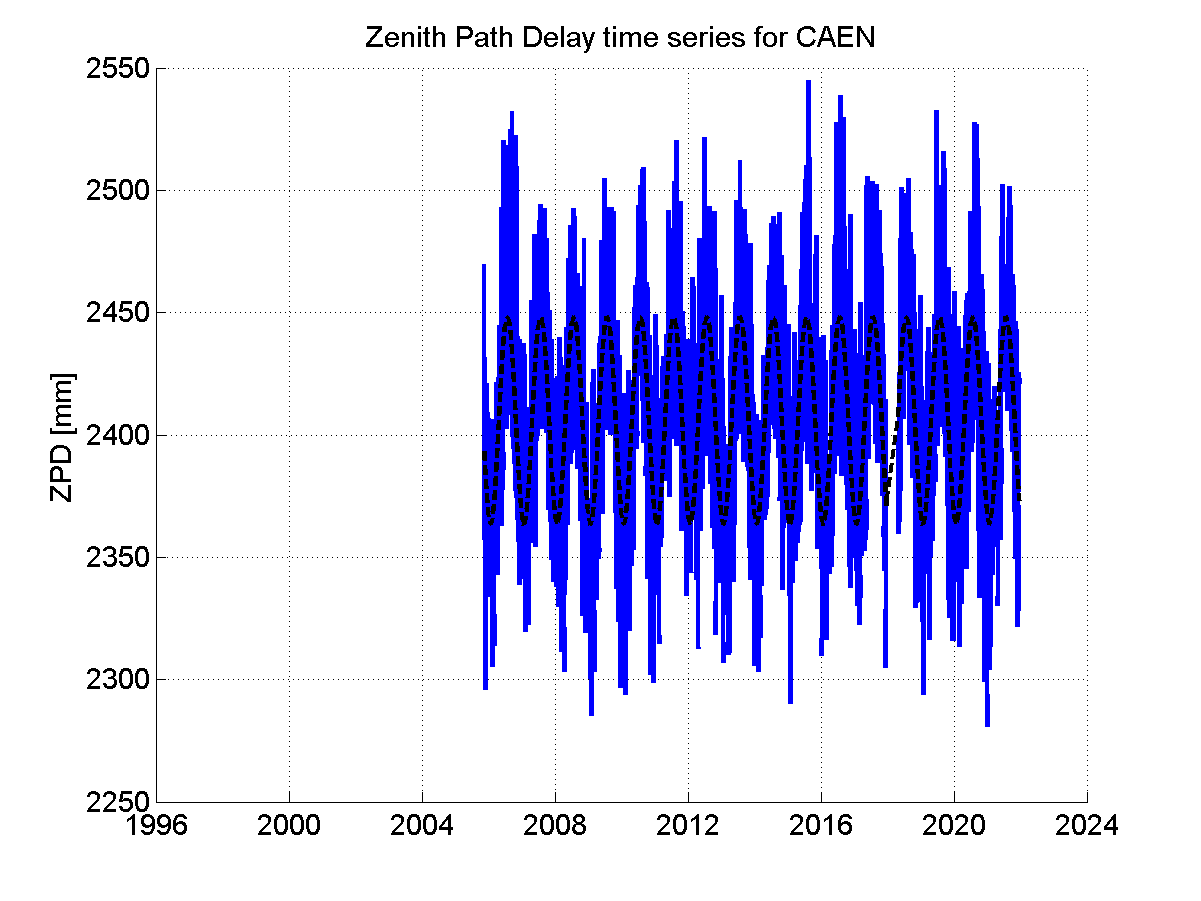

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

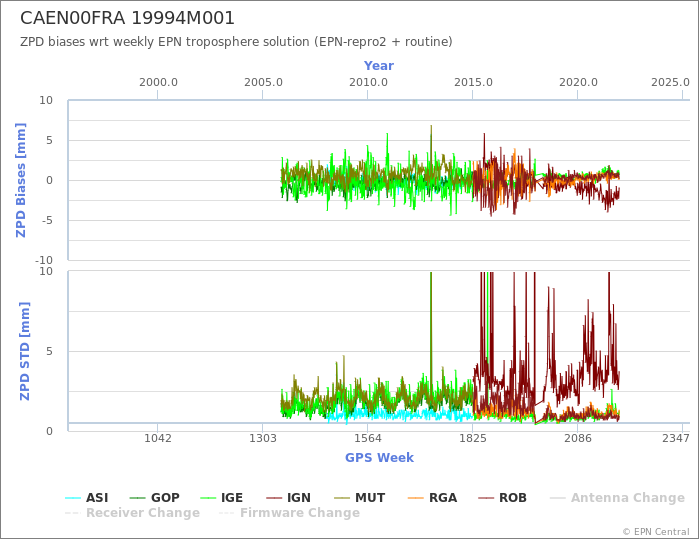

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
