EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	SDFE (Agency for Data Supply and Infrastructure)
RESPONSIBLE FOR METADATA	SDFE (Agency for Data Supply and Infrastructure)
CURRENT STATION CONFIGURATION	budp00dnk_20221113.log
STATUS IN EPN	included since 19-01-2003
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	SEPT POLARX5 (13-11-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+IRNSS
LAST ANTENNA	ASH701941.B/UNAV (19-01-2000 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BKG, LPT, NKG, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 24-02-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station BUDP00DNK
Last ETRF2000 position valid from 363/2013 to 316/2022 expressed at epoch 001/2010
X = 3513638.560 m	Vx = 0.0004 m/y
Y = 778956.198 m	Vy = -0.0004 m/y
Z = 5248216.246 m	Vz = -0.0001 m/y

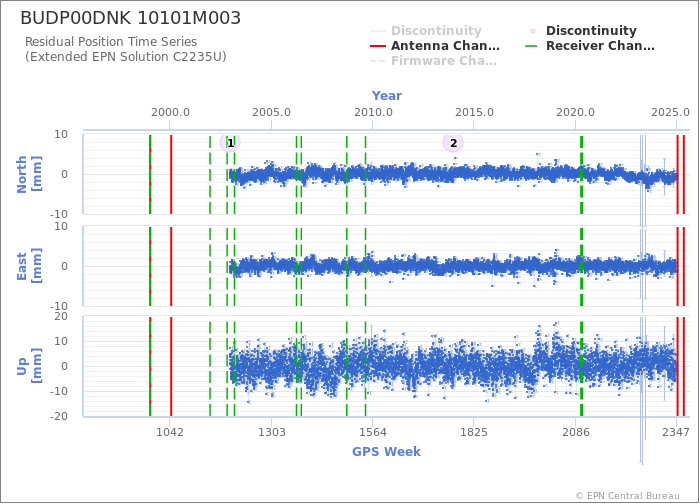

Position time series

Tropospheric Delays

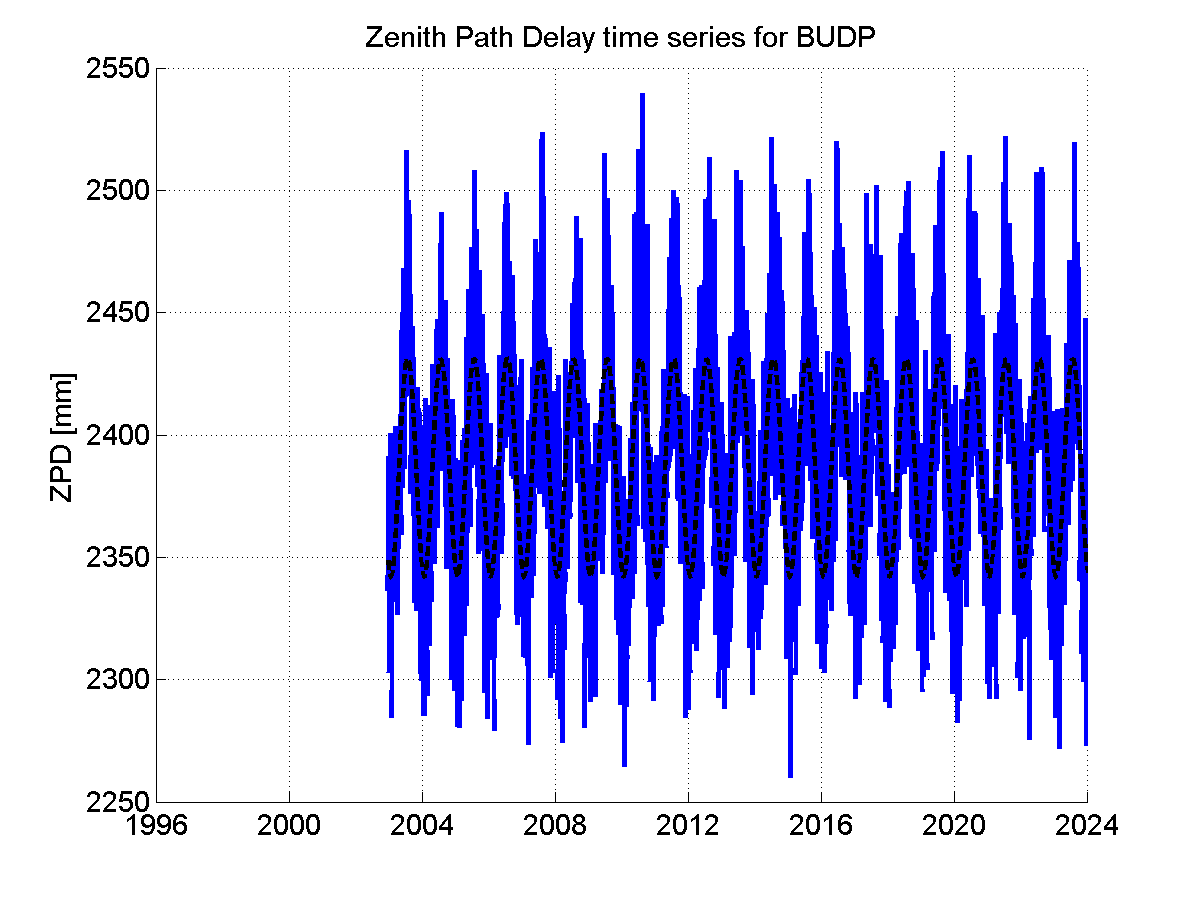

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

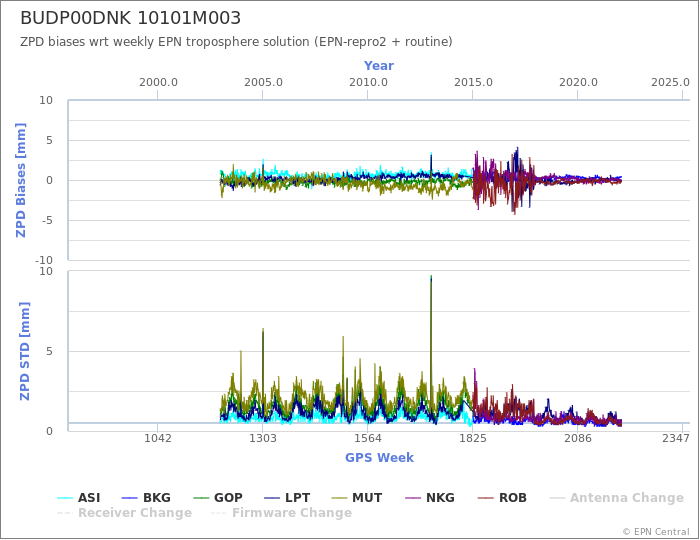

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

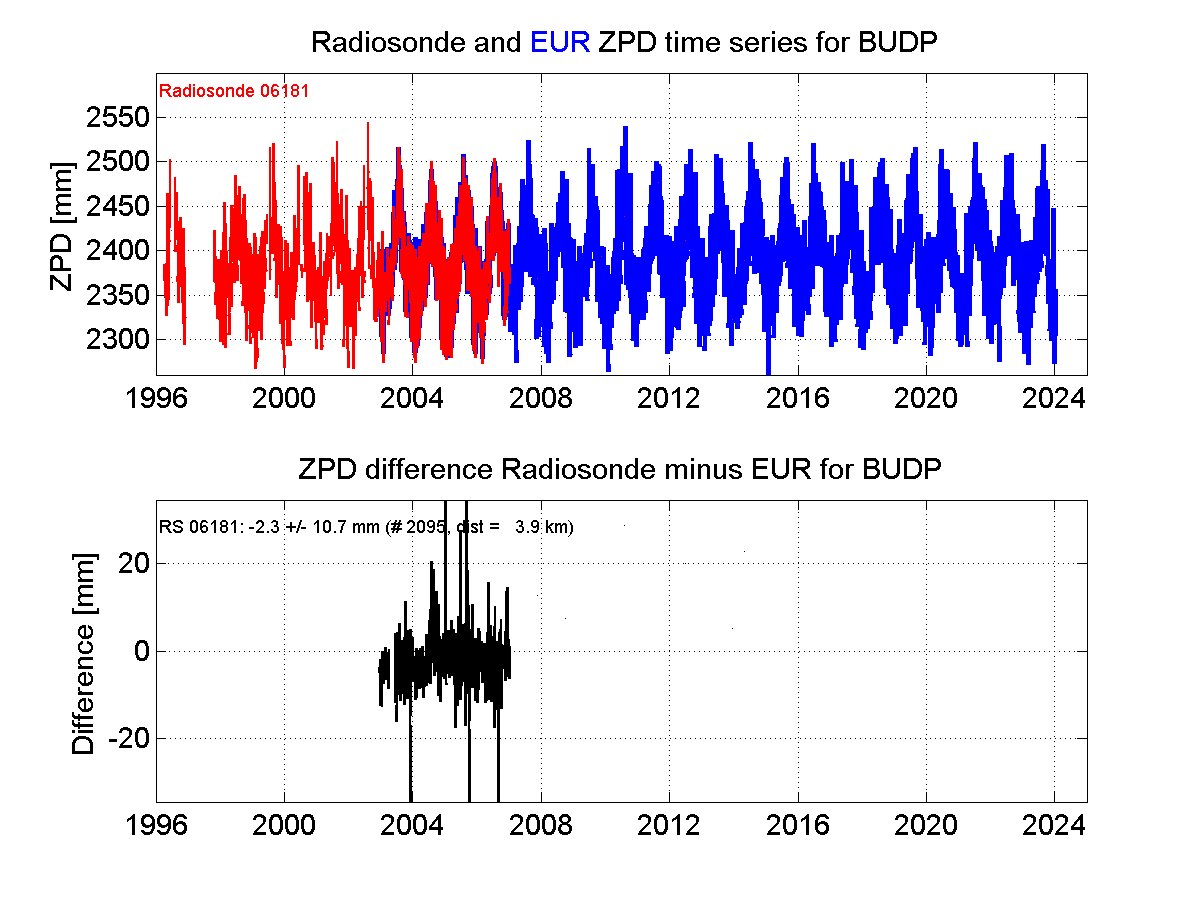

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Kobenhavn, Denmark (BUDP00DNK)
