EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
RESPONSIBLE FOR METADATA	MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
CURRENT STATION CONFIGURATION	uzhl00ukr_20171011.log
STATUS IN EPN	included since 25-07-1999
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	14-05-2024
LAST RECEIVER	NOV OEMV3 (12-11-2013 to now)
SET TO TRACK	GPS+GLO
LAST ANTENNA	NOV702GG/NONE (12-11-2013 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, MUT, SGO, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 20-10-2017.

No recent data available

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

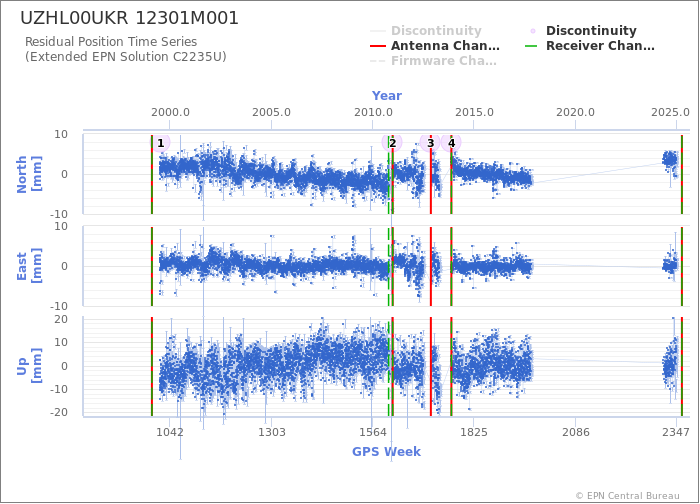

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station UZHL00UKR
Last ETRF2000 position valid from 321/2013 to 292/2017 expressed at epoch 001/2010
X = 3907587.801 m	Vx = -0.0002 m/y
Y = 1602428.477 m	Vy = -0.0003 m/y
Z = 4763783.552 m	Vz = -0.0010 m/y
