EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA	IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION	raeg00prt_20240411.log
STATUS IN EPN	included since 28-05-2017
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	21-04-2024
LAST RECEIVER	LEICA GR50 (11-04-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR20/NONE (15-05-2015 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEK, GFZ, IGE
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RAEG00PRT0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5) : stream temporarily unavailable
2024/04/23 00:04 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/04/23 00:04 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/04/23 00:04 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.5793 m) wrt site log (0.70155 m)
2024/04/23 00:04 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 6.2704 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5) : stream temporarily unavailable
2024/04/22 22:24 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/04/22 22:24 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.5793 m) wrt site log (0.70155 m)
2024/04/22 22:24 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 6.2704 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5) : stream temporarily unavailable
2024/04/23 03:26 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/04/23 03:26 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.5793 m) wrt site log (0.70155 m)
2024/04/23 03:26 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 6.2704 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

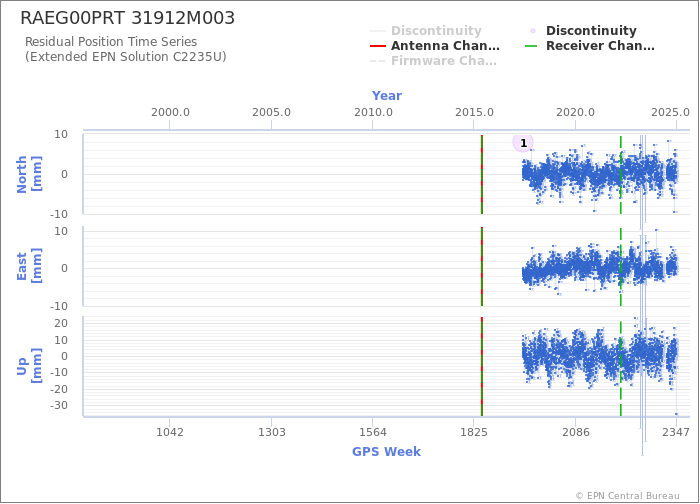

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station RAEG00PRT
Last ETRF2000 position valid from 148/2017 to 316/2022 expressed at epoch 001/2010
X = 4618483.842 m	Vx = -0.0032 m/y
Y = -2166048.468 m	Vy = -0.0036 m/y
Z = 3816305.302 m	Vz = -0.0021 m/y
