EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ASI (Agenzia Spaziale Italiana)
RESPONSIBLE FOR METADATA	ASI (Agenzia Spaziale Italiana)
CURRENT STATION CONFIGURATION	mate00ita_20240228.log
STATUS IN EPN	included since 31-12-1995
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	18-05-2024
LAST RECEIVER	LEICA GR30 (28-02-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR20/NONE (04-07-2017 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEK, BKG, MUT, RGA, UPA
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 03-08-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

MATE00ITA0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/05/19 22:37 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/05/19 22:37 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+SBAS)
2024/05/19 22:37 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/05/19 22:37 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.1010 m) wrt site log (0.22325 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/05/19 20:36 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/05/19 20:36 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/05/19 20:36 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.1010 m) wrt site log (0.22325 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/05/19 01:52 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/05/19 01:52 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/05/19 01:52 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.1010 m) wrt site log (0.22325 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

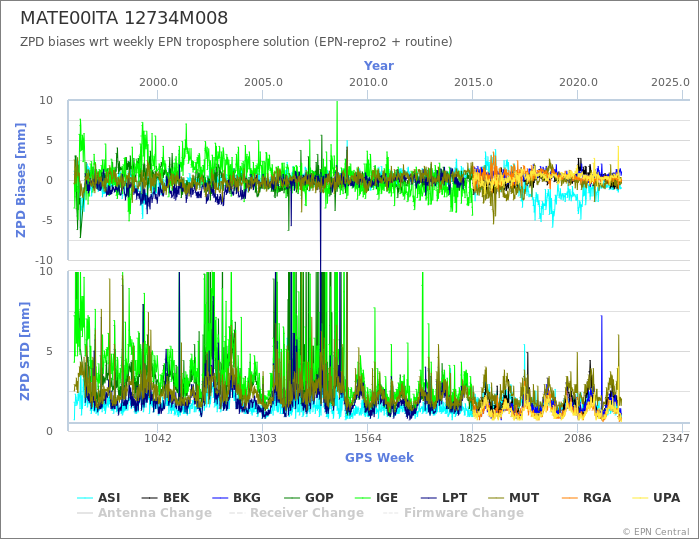

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

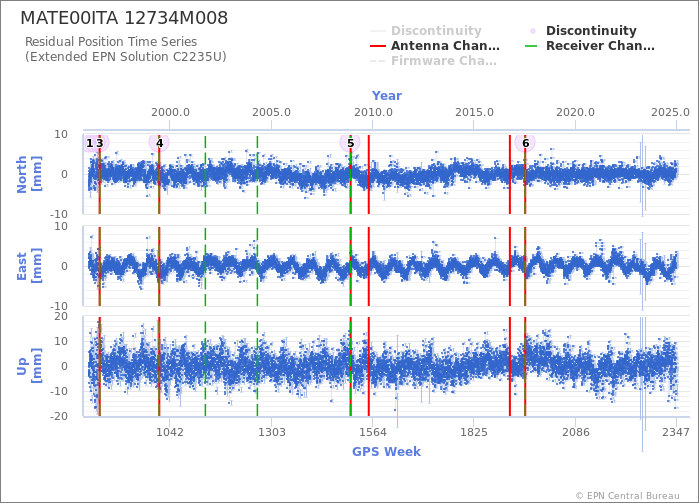

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station MATE00ITA
Last ETRF2000 position valid from 190/2017 to 316/2022 expressed at epoch 001/2010
X = 4641949.843 m	Vx = -0.0029 m/y
Y = 1393045.166 m	Vy = -0.0002 m/y
Z = 4133287.247 m	Vz = 0.0028 m/y
