Mace Head, Ireland (MAH100IRL)

RESPONSIBLE AGENCY OSI (Ordnance Survey Ireland/ Tailte Eireann National Mapping Division)
RESPONSIBLE FOR METADATA OSI (Ordnance Survey Ireland/ Tailte Eireann National Mapping Division)
CURRENT STATION CONFIGURATION mah100irl_20230331.log
STATUS IN EPN included since 02-04-2023
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 14-05-2024
LAST RECEIVER LEICA GR50 (13-12-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR20/LEIM (06-11-2020 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BKG, IGE, ROB
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 15-02-2022.

RINEX V2.11
Daily
(data calendar)

No recent data available

RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 133/2024 78.57%
BEV 135/2024 85.71%
BKGE 135/2024 85.71%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 136/2024 (P) 38.69% 0%
BKGE 136/2024 (P) 38.69% 0%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
Monthly snapshots of satellite tracking

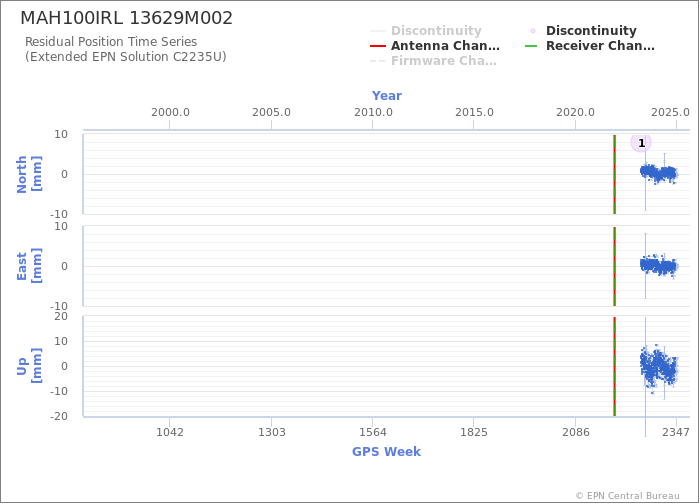

Position time series

Position time series

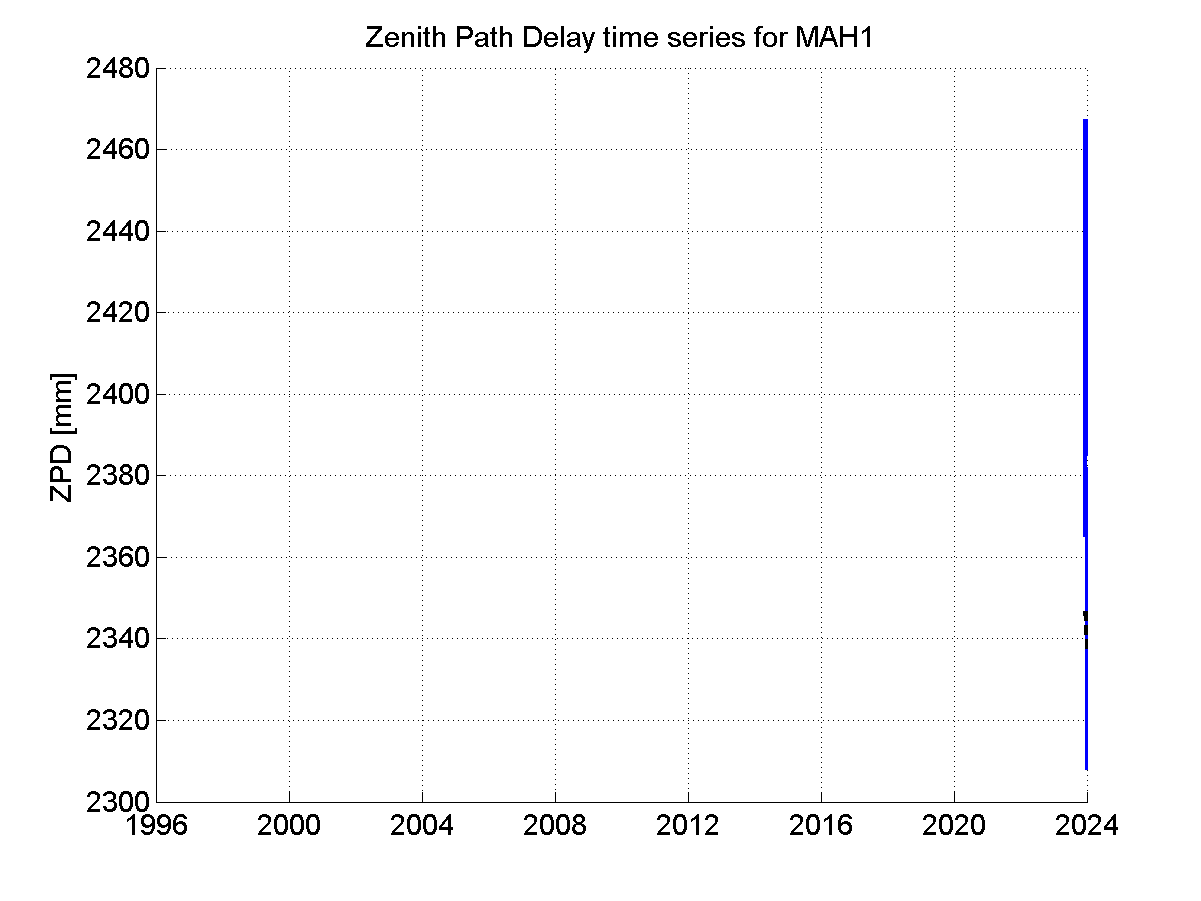

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

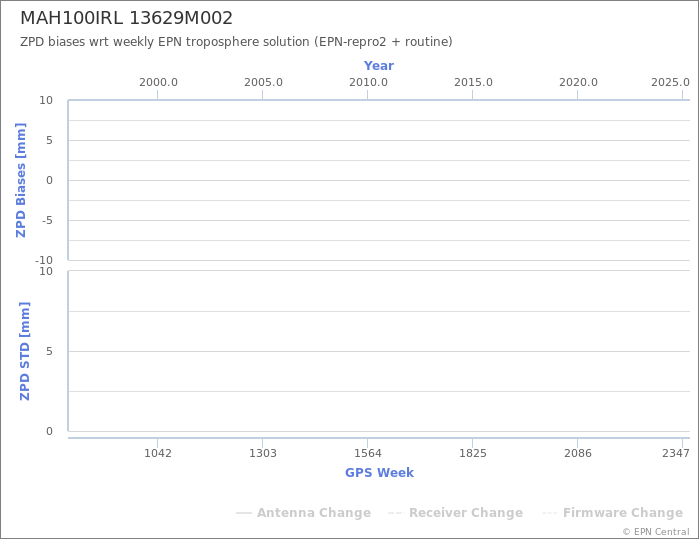

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
