London, United Kingdom Of Great Britain And Northern Ireland (the) (LICC00GBR)

RESPONSIBLE AGENCY IC (Imperial College London)
RESPONSIBLE FOR METADATA CHC (CHC TECH Limited)
CURRENT STATION CONFIGURATION licc00gbr_20230329.log
STATUS IN EPN included since 26-07-2020
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 18-05-2024
LAST RECEIVER CHC P5E (08-01-2020 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA CHCC220GR2/CHCD (10-09-2019 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, GFZ, IGE, ROB
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 21-04-2020.

RINEX V2.11
Daily
(data calendar)

No recent data available

RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 133/2024 78.57%
BEV 139/2024 100%
BKGI 139/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 140/2024 (X) 100% 0%
BKGI 140/2024 (X) 100% 0%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

LICC00GBR0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM4)

    2024/05/19 22:04 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/05/19 22:04 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.1049 m) wrt site log (0.22532 m)

    2024/05/19 22:04 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.8590 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM4)

    2024/05/19 20:03 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/05/19 20:03 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.1049 m) wrt site log (0.22532 m)

    2024/05/19 20:03 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.8590 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM4)

    2024/05/20 01:05 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/05/20 01:05 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.1049 m) wrt site log (0.22532 m)

    2024/05/20 01:05 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.8590 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station LICC00GBR
Last ETRF2000 position valid from 208/2020 to 316/2022
expressed at epoch 261/2021
X = 3978703.895 m
Y = -12141.521 m
Z = 4968416.716 m

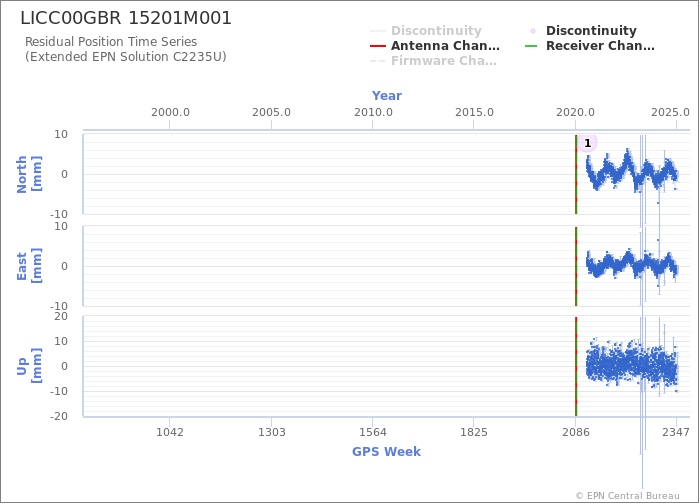

Position time series

Position time series

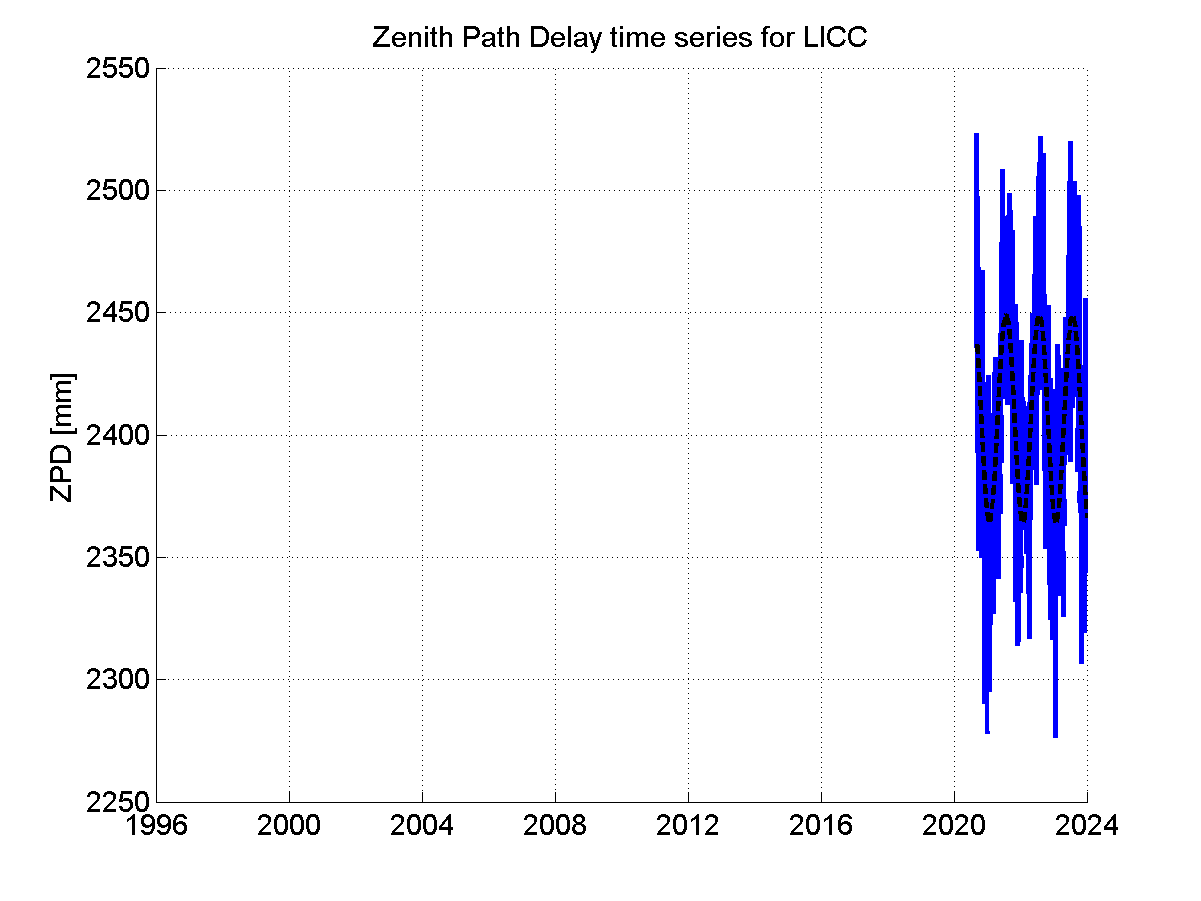

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

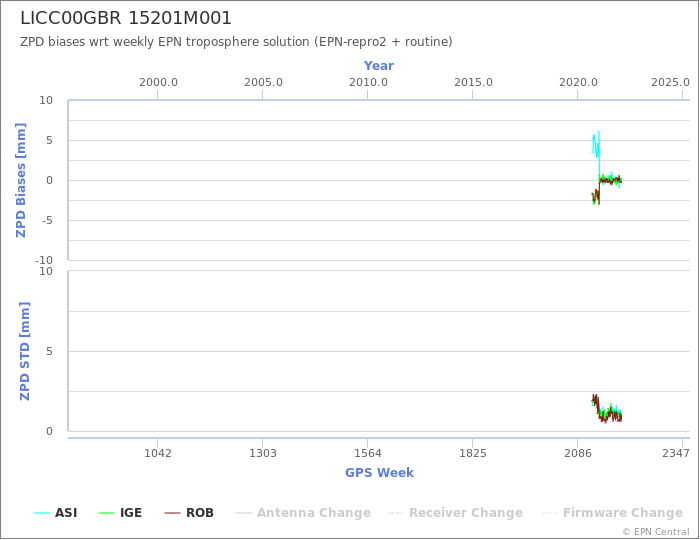

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
